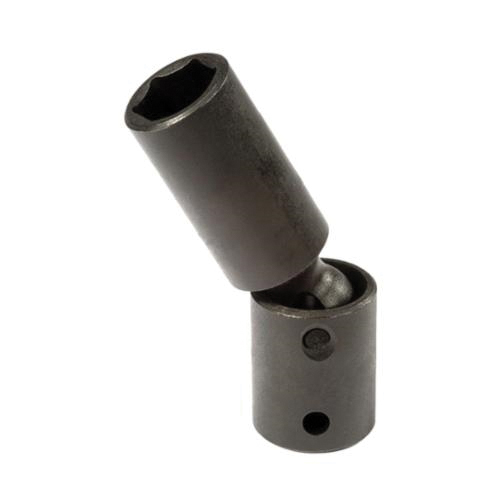

Proto® Socket, Deep Length Universal, Yes Impact Rated, Measurement System: Metric, Square Drive, 1/2 in Drive, 14 mm Socket, 3-1/2 in Overall Length, 11/16 in Opening Depth, 1-1/16 in Drive End Width, Side Locking Hole Locking, 6 Points, 1-5/8 in Bolt Clearance Depth, Alloy Steel, Black Oxide
| Bolt Clearance Depth |
: |
1-5/8 in |
| Drive End Width |
: |
1-1/16 in |
| Finish |
: |
Black Oxide |
| Locking Type |
: |
Side Locking Hole |
| Material |
: |
Alloy Steel |
| Opening Depth |
: |
11/16 in |
| Overall Length |
: |
3-1/2 in |
| Type |
: |
Deep Length Universal |
| Impact Rated |
: |
Yes |
| Measurement System |
: |
Metric |
| Drive Type |
: |
Square |
| Drive Size |
: |
1/2 in |
| Socket Size |
: |
14 mm |
| Number of Points |
: |
6 |
- Ball and spring design which allows for a 30 deg working angle
- Smooth 360 deg rotation
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
-
