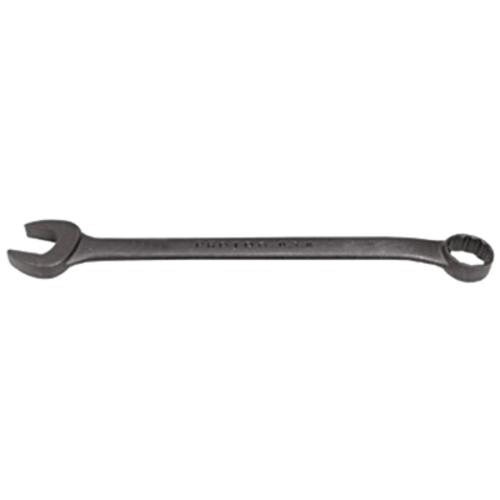

Proto® J1208MBA
send Send print Print

Proto® J1208MBA

Proto® TorquePlus™ J1208MBA Anti-Slip Design Combination Wrench, Metric, 8 mm, 12 Points, 15 deg Offset, 137.4 mm OAL, Alloy Steel, Black Oxide, ASME B107.100

  • TIEPN: PRO J1208MBA
  • MPN: J1208MBA
  • UPC: 662679074098
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Proto® TorquePlus™ Combination Wrench, Anti-Slip Design, Measurement System: Metric, 8 mm Wrench Opening, 12 Points, 137.4 mm Overall Length, 15 deg Offset, 17.4 mm Open End Width, 5.2 mm Open End Thickness, 13.5 mm Box End Width, 7.1 mm Box End Thickness, 15 deg Head, ASME B107.100 Specifications Met, 9.9 mm Throat Depth, Alloy Steel, Black Oxide

Box End Thickness      :      7.1 mm
Box End Width      :      13.5 mm
Head Angle      :      15 deg
Open End Thickness      :      5.2 mm
Open End Width      :      17.4 mm
Throat Depth      :      9.9 mm
Type      :      Anti-Slip Design
Measurement System      :      Metric
Wrench Opening      :      8 mm
Number of Points      :      12
Offset Angle      :      15 deg
Overall Length      :      137.4 mm
Material      :      Alloy Steel
Finish/Coating      :      Black Oxide
Specifications Met      :      ASME B107.100
  • Non-reflective black oxide finish for use where non-plated products are required
  • 12 point box end allows for fine indexing, helping to improve speed and access
  • Fits 4, 6 and 12 point fasteners
  • The box end is countersunk for easy application to the fastener
  • 15 deg angled offset box end helps keep shank clear of obstructions
  • Anti-slip design (ASD) open end
  • Box ends incorporate the TorquePlus™ system
  • pdfCatalog https://assets.unilogcorp.com/2/ITEM/DOC/Proto_J715_Catalog.pdf
