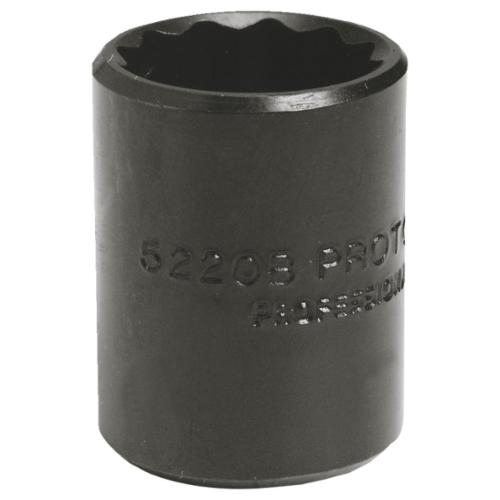

Proto® TorquePlus™ Socket, Standard Length, Measurement System: Imperial, Square Drive, 3/8 in Drive, 7/8 in Socket, 1-7/16 in Overall Length, 21/32 in Opening Depth, 1-9/64 in Drive End Width, 1-9/64 in Socket End Width, Ball Locking, 12 Points, 11/16 in Bolt Clearance Depth, Alloy Steel, Black Oxide
| Bolt Clearance Depth |
: |
11/16 in |
| Drive End Width |
: |
1-9/64 in |
| Finish |
: |
Black Oxide |
| Locking Type |
: |
Ball |
| Material |
: |
Alloy Steel |
| Opening Depth |
: |
21/32 in |
| Overall Length |
: |
1-7/16 in |
| Socket End Width |
: |
1-9/64 in |
| Type |
: |
Standard Length |
| Measurement System |
: |
Imperial |
| Drive Type |
: |
Square |
| Drive Size |
: |
3/8 in |
| Socket Size |
: |
7/8 in |
| Number of Points |
: |
12 |
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
-
