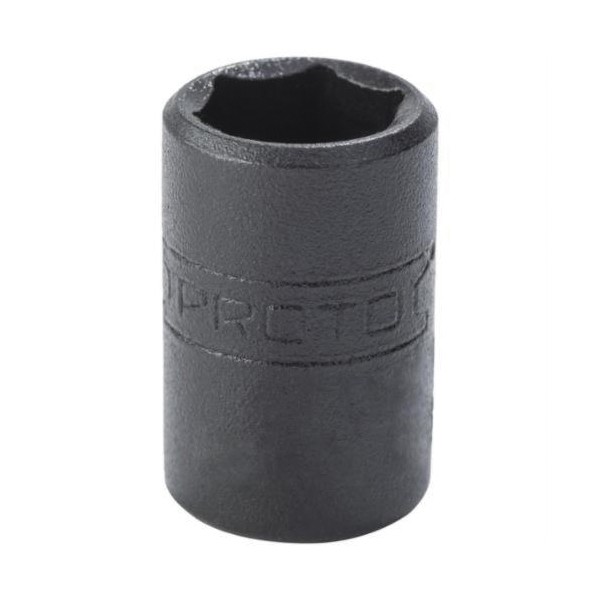

Proto® TorquePlus™ Socket, Standard Length, Series, Measurement System, Square Drive, Drive Size, in 1/4, Socket Size, in 3/16, 7/8 Overall Length, Opening Depth in, in 13/64, 31/64 Drive End Width, Socket End Width in, in 5/16, Number of Points, Bolt Clearance Depth, in 11/32, Alloy Steel, Finish
| Bolt Clearance Depth |
: |
11/32 in |
| Drive End Width |
: |
31/64 in |
| Finish |
: |
Black Oxide |
| Material |
: |
Alloy Steel |
| Opening Depth |
: |
13/64 in |
| Overall Length |
: |
7/8 in |
| Socket End Width |
: |
5/16 in |
| Type |
: |
Standard Length |
| Measurement System |
: |
Imperial |
| Drive Type |
: |
Square |
| Drive Size |
: |
1/4 in |
| Socket Size |
: |
3/16 in |
| Number of Points |
: |
6 |
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
