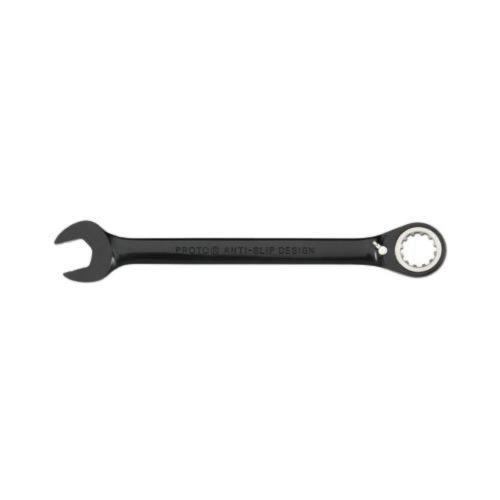

Proto® Combination Wrench, Reversible, Measurement System: Metric, Ratcheting/Spline Wrench, 8 mm Wrench Opening, 12 Points, 72 Geared Teeth, 5-1/2 in Overall Length, 15 deg Offset, 11/16 in Open End Width, 1/8 in Open End Thickness, 21/32 in Box End Width, 1/8 in Box End Thickness, ASME Specified Specifications Met, Chrome Vanadium Steel, Polished Chrome/Black
| Box End Thickness |
: |
1/8 in |
| Box End Width |
: |
21/32 in |
| Number of Geared Teeth |
: |
72 |
| Open End Thickness |
: |
1/8 in |
| Open End Width |
: |
11/16 in |
| Type |
: |
Reversible |
| Wrench Type |
: |
Ratcheting/Spline |
| Measurement System |
: |
Metric |
| Wrench Opening |
: |
8 mm |
| Number of Points |
: |
12 |
| Offset Angle |
: |
15 deg |
| Overall Length |
: |
5-1/2 in |
| Material |
: |
Chrome Vanadium Steel |
| Finish/Coating |
: |
Polished Chrome/Black |
| Specifications Met |
: |
ASME Specified |
- Metric spline wrenches can be used on metric 4, 6, 12 point, spline and Torx® fasteners
- The chrome vanadium switch lever allows for easy changes in turning direction which helps improve speed
- 15 deg angled offset box end helps keep shank clear of obstructions
- Anti-slip design (ASD) open end
- Black chrome finish is corrosion resistant and visually distinctive
- Box end is countersunk for easy application to the fastener
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
- Chrome vanadium box ends and switch levers provide high strength and durability
-
