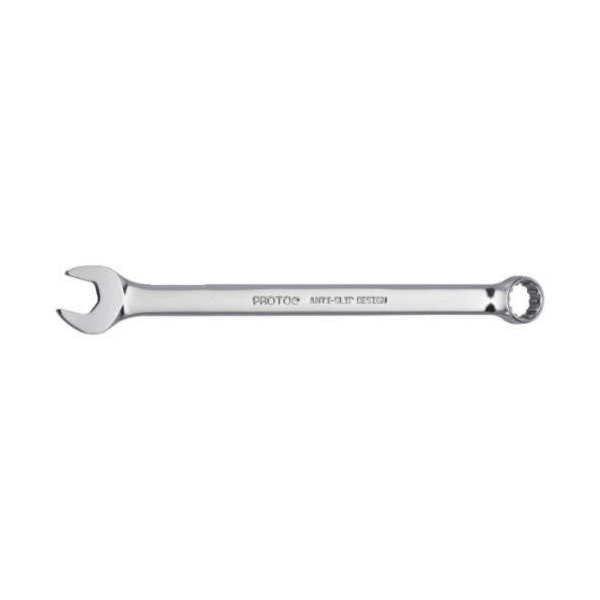

Proto® Combination Wrench, Measurement System: Imperial, Spline Wrench, 7/16 in Wrench Opening, 12 Points, 6-29/32 in Overall Length, 15 deg Offset, 15/16 in Open End Width, 7/32 in Open End Thickness, 43/64 in Box End Width, 17/64 in Box End Thickness, 15 deg Head, ASME B107.100 Specifications Met, 15/32 in Throat Depth, Alloy Steel, Full Polished
| Box End Thickness |
: |
17/64 in |
| Box End Width |
: |
43/64 in |
| Head Angle |
: |
15 deg |
| Open End Thickness |
: |
7/32 in |
| Open End Width |
: |
15/16 in |
| Throat Depth |
: |
15/32 in |
| Wrench Type |
: |
Spline |
| Measurement System |
: |
Imperial |
| Wrench Opening |
: |
7/16 in |
| Number of Points |
: |
12 |
| Offset Angle |
: |
15 deg |
| Overall Length |
: |
6-29/32 in |
| Material |
: |
Alloy Steel |
| Finish/Coating |
: |
Full Polished |
| Specifications Met |
: |
ASME B107.100 |
- Spline fasteners help tighten high strength bolts to high torque loads
- They help lower the force required to turn standard fasteners by allowing the torque load to be moved away from the corners, helping prevent fastener rounding
- They also turn fasteners with damaged corners
- Spline helps reduce foreign object debris by having a precise fit between the fastening tool and its fastener
- Full polish finish provides corrosion resistance and an easy-to-clean surface
- Anti-slip design (ASD) open end
-
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/Proto_JHAM4S_Catalog.pdf
