Proto® J12112

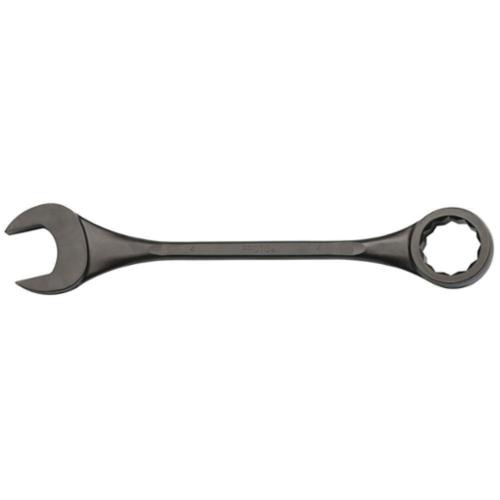

Proto® J12112 Combination Wrench, Imperial, 3-1/2 in, 12 Points, 15 deg Offset, 37 in OAL, Alloy Steel, Black Oxide, ASME B107.100

  • TIEPN: PRO J12112
  • MPN: J12112
  • UPC: 662679001575
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Proto® Combination Wrench, Measurement System: Imperial, Spline Wrench, 3-1/2 in Wrench Opening, 12 Points, 37 in Overall Length, 15 deg Offset, 7 in Open End Width, 5-7/8 in Box End Width, 2-1/4 in Box End Thickness, 15 deg Head, ASME B107.100 Specifications Met, 3-7/8 in Throat Depth, Alloy Steel, Black Oxide

Box End Thickness      :      2-1/4 in
Box End Width      :      5-7/8 in
Head Angle      :      15 deg
Open End Width      :      7 in
Throat Depth      :      3-7/8 in
Wrench Type      :      Spline
Measurement System      :      Imperial
Wrench Opening      :      3-1/2 in
Number of Points      :      12
Offset Angle      :      15 deg
Overall Length      :      37 in
Material      :      Alloy Steel
Finish/Coating      :      Black Oxide
Specifications Met      :      ASME B107.100
  • For use on extra large fasteners
  • Forged heads with machined openings
  • 12 point box end allows for fine indexing, helping to improve speed and access
  • Fits 4, 6 and 12 point fasteners
  • Box end is countersunk for easy application to the fastener
