DeWALT® PFM1411000

DeWALT® Screw-Bolt+™ PFM1411000 High Performance Screw Anchor, 1/4 in Dia, 1-1/4 in OAL, Hex Head Drive, Steel, 1 in D Min Embedment

  • TIEPN: BLD PFM1411000
  • MPN: PFM1411000
  • UPC: 075352304908
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

The Screw-Bolt+™ anchor is a one piece, heavy duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+™ finish is available in bright zinc plated and mechanically galvanized. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.

DeWALT® Screw-Bolt+™ Screw Anchor, High Performance, 1/4 in Diameter, 1-1/4 in Overall Length, Hex Head Drive, Steel, 1 in Minimum Embedment Depth, 1/4 in Drill, Zinc Plated, Applicable Materials: Normal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick, 7/16 in Head, 1/4 in Maximum Work Thickness, 1600/1755/1910/2080 lb Shear Strength, 1325/1400/1530/1725 lb Tensile Strength

Applicable Materials      :      Normal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick
Drill Size      :      1/4 in
Finish      :      Zinc Plated
Head Size      :      7/16 in
Maximum Work Thickness      :      1/4 in
Shear Strength      :      1600/1755/1910/2080 lb
Tensile Strength      :      1325/1400/1530/1725 lb
Type      :      High Performance
Diameter      :      1/4 in
Overall Length      :      1-1/4 in
Head Drive Type      :      Hex
Material      :      Steel
Minimum Embedment Depth      :      1 in
  • Designed for standard ANSI tolerance drill bits
  • Tough threads for tapping high strength concrete
  • Can be installed closer to the edge than traditional expansion anchors

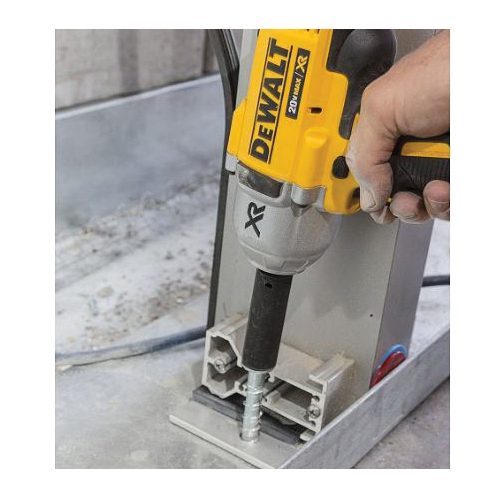

  • Fast installation with powered impact wrench
  • 1-piece, finished head design
  • Patented thread design offers low installation torque
  • Ratchet teeth on underside of hex washer head lock against the fixture
  • Fully removable and re-installable in same hole
  • Diameter, length and identifying marking stamped on head of each anchor
  • 1600/1755/1910/2080/2080 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete shear strength
  • 1325/1400/1530/1725/1725 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete tensile strength
