DeWALT® DW1608

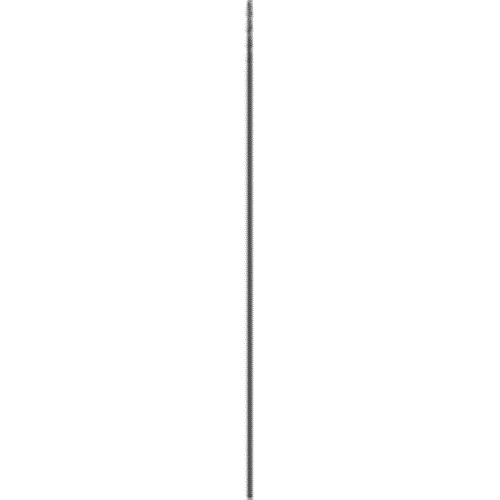

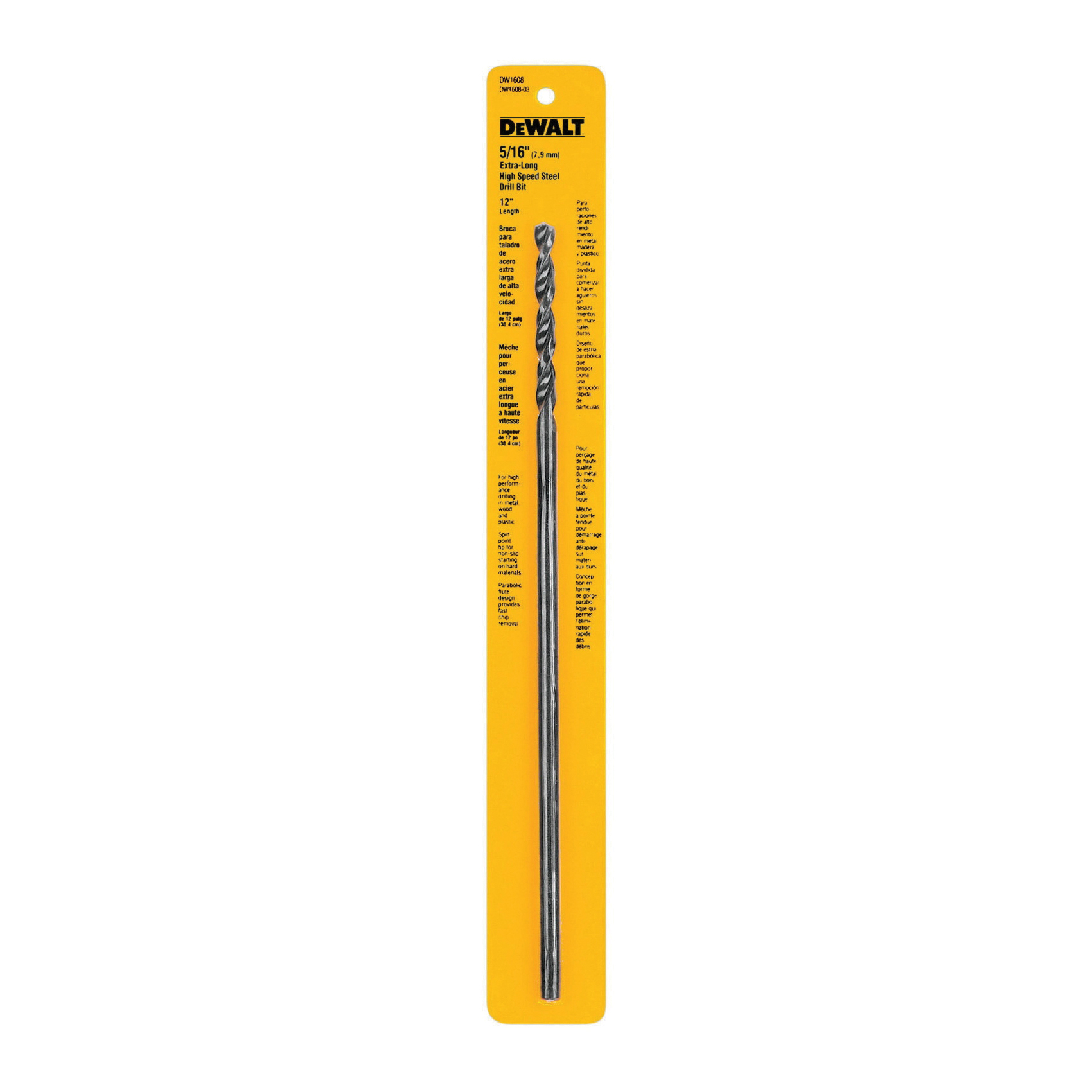

DeWALT® DW1608 Extended Length Drill, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 12 in OAL, HSS

  • TIEPN: BLD DW1608
  • MPN: DW1608
  • UPC: 028874116085
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

The DeWalt® DW1608 5/16 x 12 in black oxide drill bit has a helix of 31 deg which minimizes the over aggressiveness of a true parabolic flute. With a black oxide coating and a split point, this is a drill bit with great wear resistance that won't walk across your project.

DeWALT® Extended Length Drill, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 12 in Overall Length, 3.26 in Cutting Depth, Regular Spiral Flute, 3.26 in Flute Length, 5/16 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS, Black Oxide, Applicable Materials: Stainless Steel, Ferrous and Non-Ferrous Metal

Cutting Depth      :      3.26 in
Cutting Direction      :      Right Hand
Finish      :      Black Oxide
Flute Length      :      3.26 in
Flute Type      :      Regular Spiral
Point Angle      :      135 deg
Point Type      :      Split
Shank Size      :      5/16 in
Shank Type      :      Straight
Drill Size - Fraction      :      5/16 in
Drill Size - Decimal Inch      :      0.3125 in
Overall Length      :      12 in
Material      :      HSS
Applicable Materials      :      Stainless Steel, Ferrous and Non-Ferrous Metal
  • Parabolic flute design improves chip ejection in metal and wood drilling applications
  • Black oxide coated for greater wear resistance
  • 135 deg split point drills on contact and prevents walking
  • Helix is 31 deg which minimizes the over aggressiveness of a true parabolic flute
