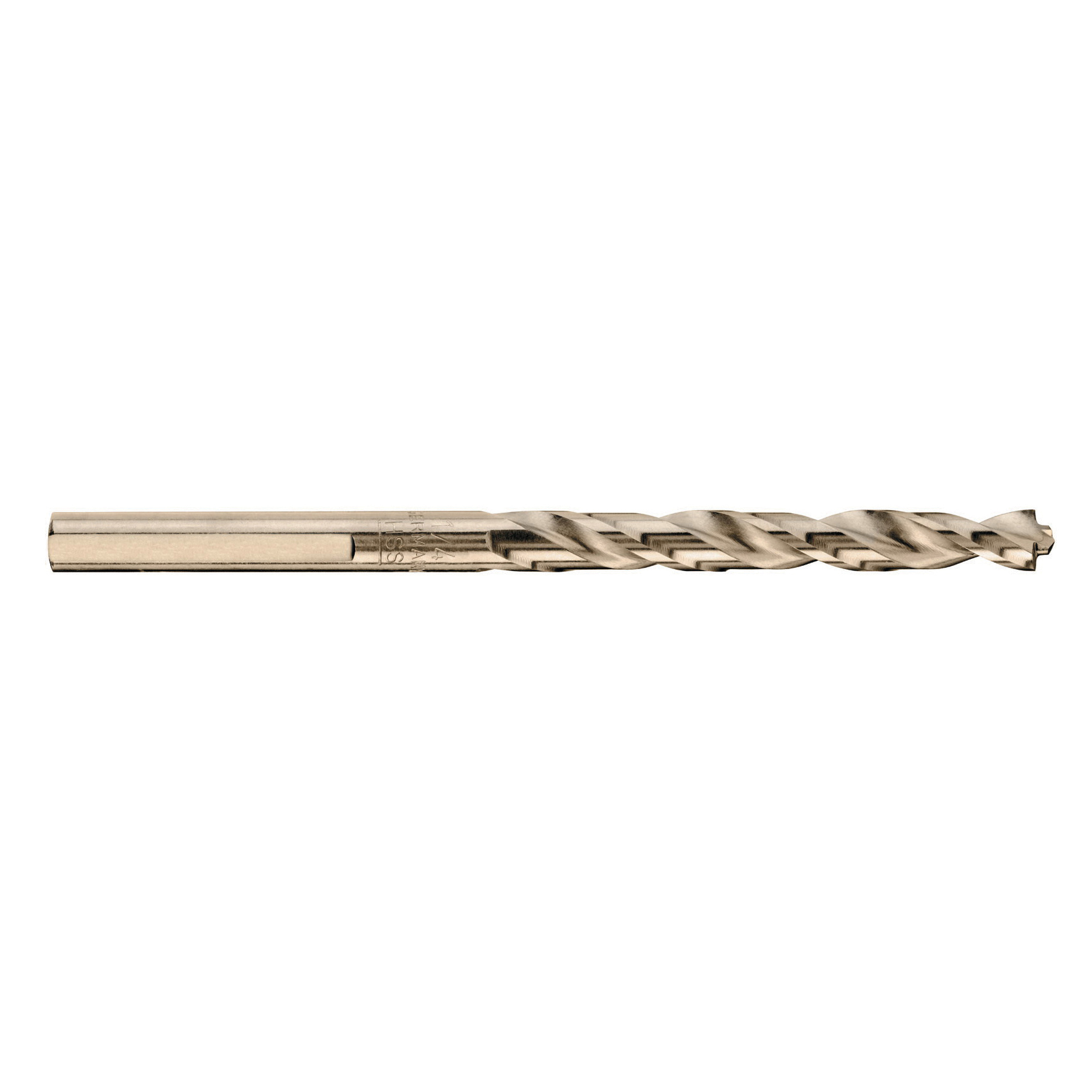

DeWALT® DW1909

DeWALT® DW1909 General Purpose Pilot Point Drill Bit, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, 1-3/4 in L Flute, HSS

  • TIEPN: BLD DW1909
  • MPN: DW1909
  • UPC: 028877302348
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

DeWALT® Pilot Point Drill Bit, General Purpose, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, 2.88 in Overall Length, 1-3/4 in Cutting Depth, Spiral Flute, 1-3/4 in Flute Length, 9/64 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Gold Ferrous Oxide, Applicable Materials: Aluminum/Wood/Plastic

Applicable Materials      :      Aluminum/Wood/Plastic
Cutting Depth      :      1-3/4 in
Cutting Direction      :      Right Hand
Cutting Edge Material      :      HSS
Finish      :      Gold Ferrous Oxide
Flute Type      :      Spiral
Overall Length      :      2.88 in
Point Angle      :      135 deg
Point Type      :      Split
Shank Size      :      9/64 in
Shank Type      :      Straight
Type      :      General Purpose
Drill Size - Fraction      :      9/64 in
Drill Size - Decimal Inch      :      0.1406 in
Flute Length      :      1-3/4 in
Material      :      HSS
  • Pilot Point® tip starts on contact for clean, accurate holes and reduces lock-up on breakthrough
  • No-spin shank eliminates the frustration of bit spinning in the chuck
  • Tapered web provides greater durability to reduce breaking
  • Size markings are located above the shank to prevent wearing away
