DeWALT® DW788

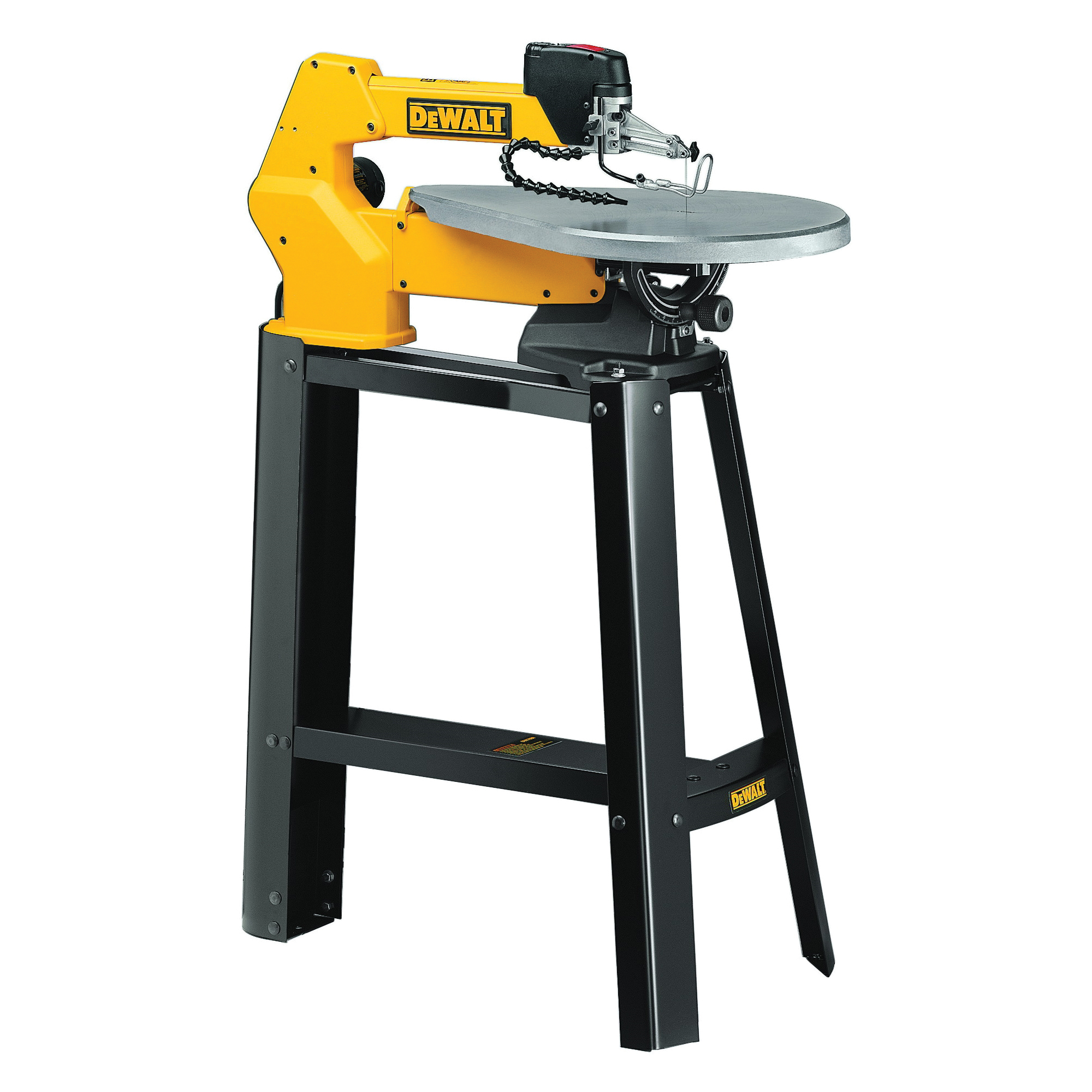

DeWALT® DW788 Heavy Duty Scroll Saw, 3/4 in L Stroke, 400 to 1750 spm, 2 in Depth of Cut

  • TIEPN: BLD DW788
  • MPN: DW788
  • UPC: 028875007887
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

DeWALT® Scroll Saw, Heavy Duty, Bare Tool, 3/4 in Stroke Length, 400 to 1750 spm Strokes per Minute, 2 in Depth of Cut, 20 in Blade, 120 VAC, 1.3 A, Cast Iron Housing Material, Yellow, 15 ft Cord, Variable Speed/ON/OFF Switch Control, 12.12 in H x 19.5 in W x 29.5 in D Dimensions

Amperage Rating      :      1.3 A
Blade Size      :      20 in
Color      :      Yellow
Control Type      :      Variable Speed/ON/OFF Switch
Cord Type      :      15 ft
Dimensions      :      12.12 in H x 19.5 in W x 29.5 in D
Housing Material      :      Cast Iron
Type      :      Heavy Duty
Voltage Rating      :      120 VAC
Tool/Kit      :      Bare Tool
Stroke Length      :      3/4 in
Strokes per Minute      :      400 to 1750 spm
Depth of Cut      :      2 in
  • Double parallel link arm design dramatically reduces vibration and noise, for extremely accurate cuts

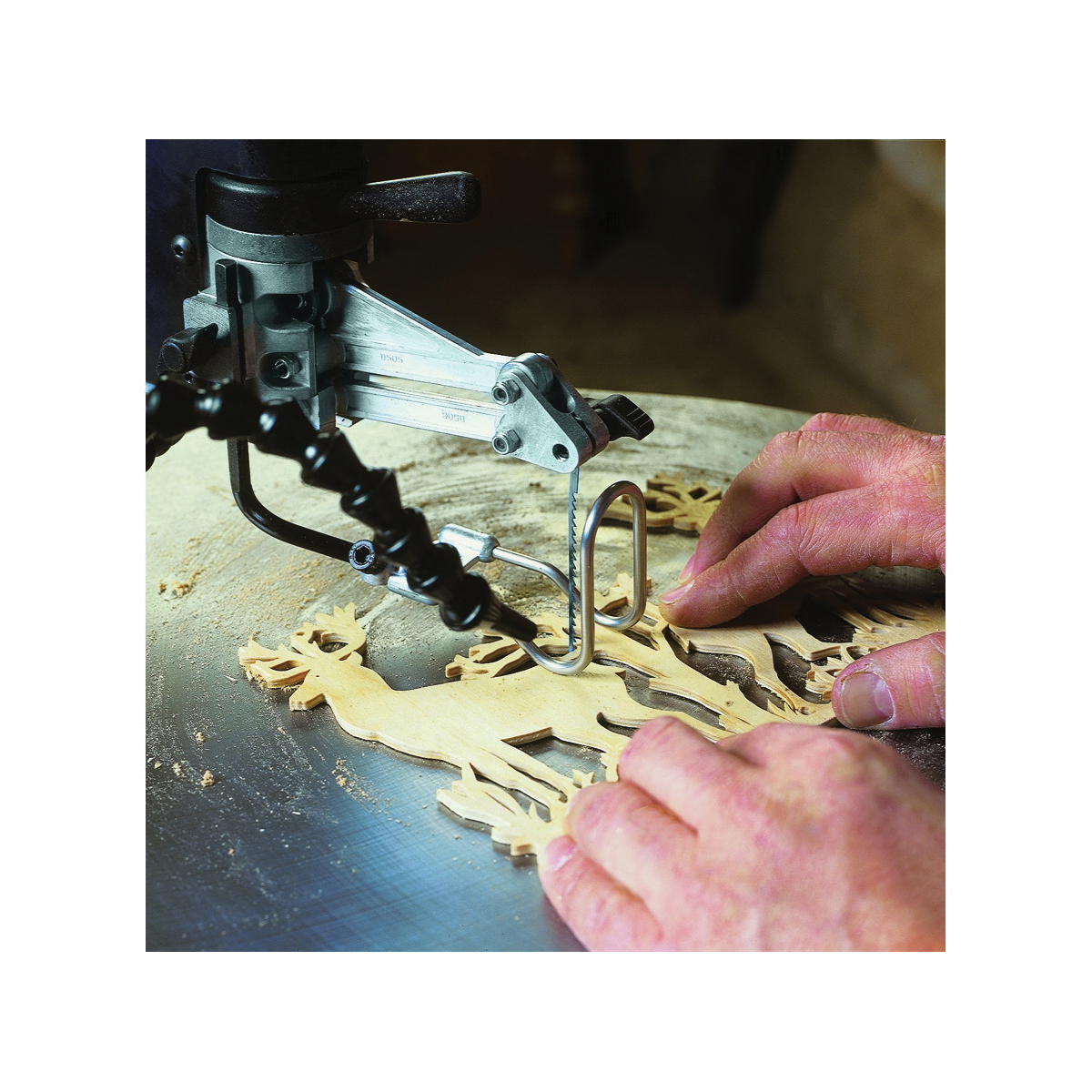

  • Tool free blade clamps allow blade changes in seconds
  • On-Off switch, electronic variable speed, flexible dust blower and blade tensioning lever are all located on the front upper arm
  • Arm lifts so that blade can be easily threaded through the material for inside cuts
  • Arm design keeps the blade perpendicular to the work, dramatically reducing over or under cutting
  • Oversized, cast iron table provides excellent material support and bevels 45 deg left and right
  • pdfOwners/User Manual https://assets.unilogcorp.com/2/ITEM/DOC/DeWalt_DW788_User_Manual.pdf
  • pdfWarranty Information https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_735772635627bf6b8b4f856fd3aefeaff9f380a410cdbbc3d0abf917d0730132.pdf
