DeWALT® 6913SD-PWR

DeWALT® POWER-BOLT®+ 6913SD-PWR Heavy Duty Sleeve Anchor, 3/8 in Dia, Carbon Steel, Hex Head, Hex Drive

  • TIEPN: BLD 6913SD-PWR
  • MPN: 6913SD-PWR
  • UPC: 075352805153
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

The POWER-BOLT®+ anchor is a torque controlled, heavy duty sleeve style anchor which is designed for consistent performance in cracked and un-cracked concrete. Suitable base materials include normal weight concrete and sand lightweight concrete. The anchor is manufactured with a zinc plated carbon steel bolt, sleeve, cone and expansion clip. The power Bolt+ has a low profile finished hex head.

DeWALT® POWER-BOLT®+ Sleeve Anchor, Heavy Duty, 3/8 in Diameter, Carbon Steel, Hex Head, Hex Drive, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3 in Overall Length, 3/8 in Drill, 1 in Maximum Work Thickness, 3990 lb Shear Strength, 4425 lb Tensile Strength

Drill Size      :      3/8 in
Finish      :      Zinc Plated
Maximum Work Thickness      :      1 in
Minimum Embedment Depth      :      1-5/8 in
Overall Length      :      3 in
Shear Strength      :      3990 lb
Tensile Strength      :      4425 lb
Type      :      Heavy Duty
Diameter      :      3/8 in
Material      :      Carbon Steel
Head Type      :      Hex
Drive Type      :      Hex
  • Consistent performance in high and low strength concrete
  • Anchor can be installed through standard fixture holes
  • Anchor design allows for follow-up expansion after setting under tensile loading
  • Nominal drill bit size is the same as the anchor diameter

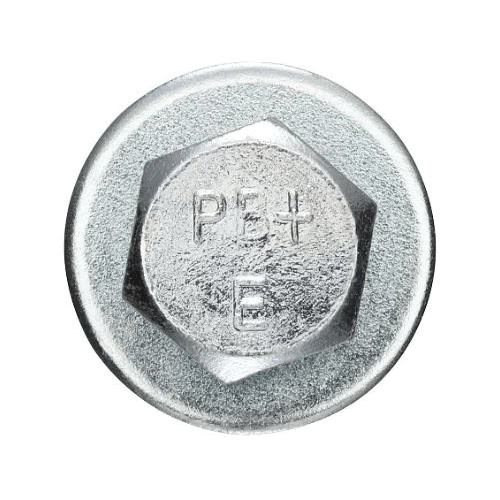

  • Length ID code and identifying marking stamped on head of each anchor
  • High shear load capacity
