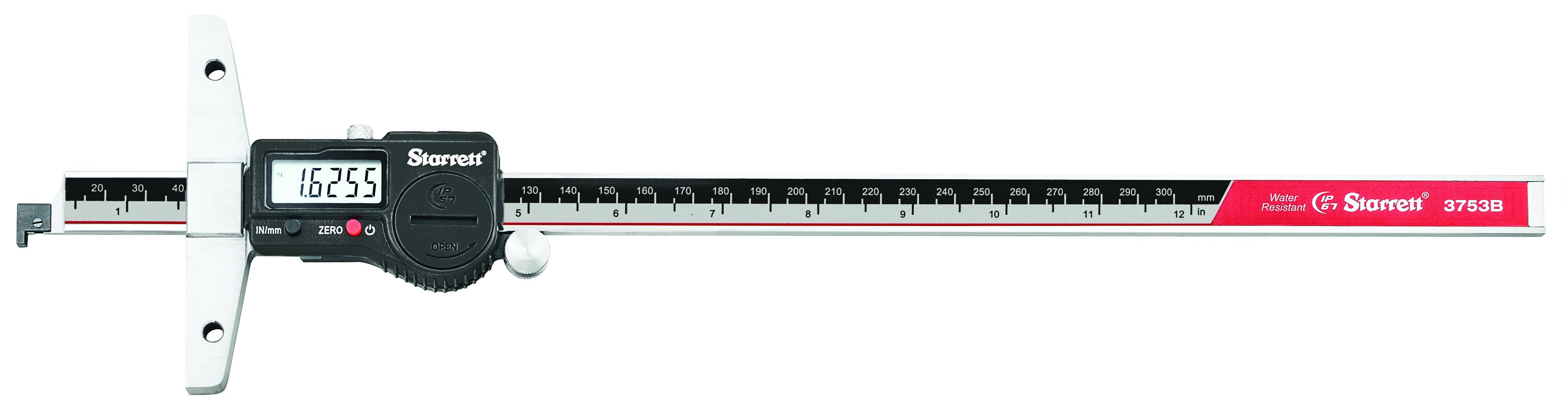

The 3753B electronic depth gage is a versatile, easy-to-use tool for measuring depth, slot width, small section sizes and other applications. The gage provides an IP67 level of protection against foreign matter in a hostile shop environment and has an extra-large LCD for excellent readability. It also offers RS232 output to work with Datasure wireless systems as well as with cable-based products.

Starrett® Electronic Depth Gage, Series: 3753, 0 to 12 in Measuring, +/-0.001 in Accuracy, 0.0005 in Resolution, 3-15/16 in Base Length, 3 VDC Battery Power Source, Hardened Stainless Steel

• Clear, easily-read numbers, properly sized for the tool
• Hardened stainless steel body and slide for long life
• Fine adjustment thumb roll for precision measurements
• Lock to hold the slide in position
• Hardened base is 3-15/16 in long, but optional base extensions of 7 in and 12 in are available
• Spacing between holes is 2-3/4 in
• Hook attachment, to take readings from the edge of a workpiece to edges of slots, grooves, shoulders, and other ID length dimensioning
• The removable hook has the screw permanently attached to prevent loss
• One-year minimum battery life with furnished 3 V battery, CR2032
• In/millimeter conversion
• Zero at any position
• Automatic shutoff after 30 min of non-use without loss of position upon reactivation
