Milwaukee® 48-20-4052

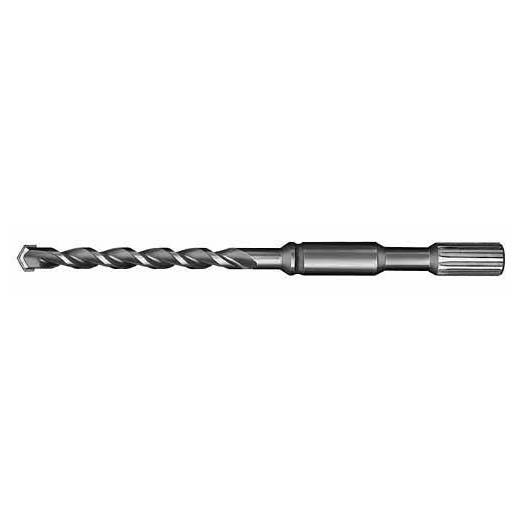

Milwaukee® 48-20-4052 2-Cutter Rotary Hammer Drill Bit, 1/2 in Drill Bit, 3/4 in Spline Shank, 16 in D Cutting, Carbide Cutting Edge, 22 in OAL

  • TIEPN: MLE 48-20-4052
  • MPN: 48-20-4052
  • UPC: 045242102426
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Two cutter spline bits have a series of 12 spline that slide into an equal but opposite set of spline in the drive system of the spline drive hammer. This positive engagement of spline to spline allows maximum transmission of energy from the hammer to the bit. Superior quality Carbide nibs are vacuum brazed to a heat treated steel body resulting in two cutting edges which pulverize the concrete as the bit turns and pounds the work surface. Available from 3/8 in. to 1-1/2 in. diameters as well as metric diameters. One per package.

Milwaukee® Rotary Hammer Drill Bit, 2-Cutter, 1/2 in Drill Bit, 22 in Overall Length, 16 in Cutting Depth, 16 in Flute Length, 3/4 in Shank, Spline Shank, Centering Point, Right Hand Cutting Direction, Carbide Cutting Edge, Steel, Bright, Silver, Applicable Materials: Block, Brick and Concrete

Applicable Materials      :      Block, Brick and Concrete
Color      :      Silver
Cutting Direction      :      Right Hand
Finish      :      Bright
Flute Length      :      16 in
Material      :      Steel
Point Type      :      Centering
Type      :      2-Cutter
Drill Bit Size      :      1/2 in
Shank Size      :      3/4 in
Shank Type      :      Spline
Cutting Depth      :      16 in
Cutting Edge Material      :      Carbide
Overall Length      :      22 in
