Milwaukee® 2216-20NST

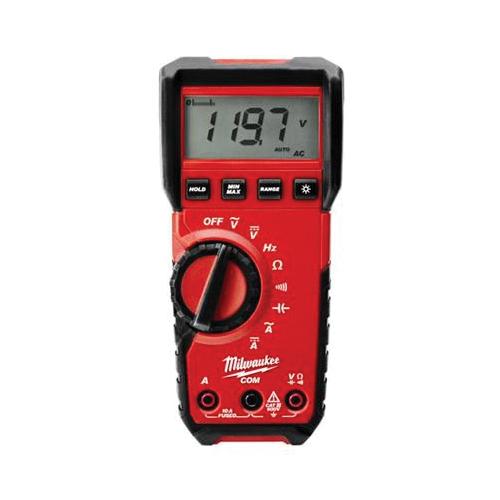

Milwaukee® 2216-20NST Heavy Duty Digital Multimeter, 6 mV to 600 VAC, 600 mV to 600 VDC, 10 A, 600 Ohm to 40 MOhm, LCD Display

  • TIEPN: MLE 2216-20NST
  • MPN: 2216-20NST
  • UPC: 045242341191
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 digital multimeter features: true RMS measurement to accurately measure all applications; CATIII 600 V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 V; DC voltage range of 600 millivolts to 600 V DC; resistance measurement from 600 ohms to 40 m Ohm; frequency measurement from 10 Hz to 50 kilohertz; detects continuity at less than 30 ohms; current measurement to 10 A AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories.

Milwaukee® Digital Multimeter, Heavy Duty, 6 mV to 600 VAC, 600 mV to 600 VDC, 10 A, 10 Hz to 50 kHz Frequency, 600 Ohm to 40 MOhm Resistance, Safety Rating: Cat III 600 VAC, 1000 uF Capacitance, +/-0.5% of Reading + 2 Digits Accuracy, LCD Display, AA Alkaline Battery, Peak Hold: Yes, -40 to 752 deg F, Polycarbonate/Rubber Overmold, Red with Black

Accuracy      :      +/-0.5% of Reading + 2 Digits
Battery Type      :      AA Alkaline
Capacitance      :      1000 uF
Color      :      Red with Black
Frequency Rating      :      10 Hz to 50 kHz
Material      :      Polycarbonate/Rubber Overmold
Peak Hold      :      Yes
Safety Rating      :      Cat III 600 VAC
Temperature Rating      :      -40 to 752 deg F
Type      :      Heavy Duty
Voltage Rating      :      6 mV to 600 VAC, 600 mV to 600 VDC
Amperage Rating      :      10 A
Resistance      :      600 Ohm to 40 MOhm
Display Type      :      LCD
  • True-RMS for accurate measurement in all applications
  • Wide voltage range to 600 VAC/VDC
  • Resistance range from 600 Ohm to 40 mOhm
  • Auto range to mV
  • Frequency measurements from 10 Hz to 50 kHz
  • Measures current to 10 A AC/DC
  • Rugged over-molding increases durability and user grip
  • Cat III 600 V for increased safety
  • Capacitance to 1000 uF
