Pramet 6754263
send Send print Print

Pramet 6754263

Pramet 6754263 2-Sided Indexable Insert, Rectangle Shape, LCMF Insert, 0220 Insert, Manufacturer's Grade: T8330, Material Grade: H, K, M, N, P, S

  • TIEPN: PTD 6754263
  • MPN: 6754263
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

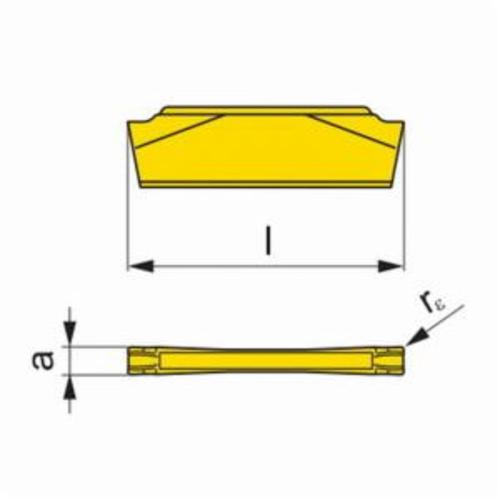

Pramet Indexable Insert, 2-Sided, LCMF Insert, 0220 Insert, Rectangle Shape, 0.079 in Maximum Depth of Cut, F1 Chipbreaker, 1/128 in Corner Radius, 0.079 in Width, 0.768 in Length, Manufacturer's Grade: T8330, ISO Code: LCMF 022002-F1, Carbide, Material Grade: H, K, M, N, P, S

Chipbreaker      :      F1
Corner Radius      :      1/128 in
ISO Code      :      LCMF 022002-F1
Length      :      0.768 in
Material      :      Carbide
Maximum Depth of Cut      :      0.079 in
Type      :      2-Sided
Width      :      0.079 in
Shape      :      Rectangle
Insert Style      :      LCMF
Insert Size      :      0220
Material Grade      :      H, K, M, N, P, S
  • T8330 - sub-micron substrate with a relatively high cobalt content
  • Nano-layered PVD coating with gradient transitions
  • Lower internal coating tension with higher hardness
  • Lower notch wear on the main cutting edge
  • Medium cutting speeds
  • Good operative reliability
  • Impaired machining conditions
  • Extremely universal cutting geometry, generates a very locutting width force and has good stability
  • Suitable for slightly interrupted cut
  • Cutting geometry particularly suited to parting and grooving
