Dixon® 4FF6
send Send print Print

Dixon® 4FF6

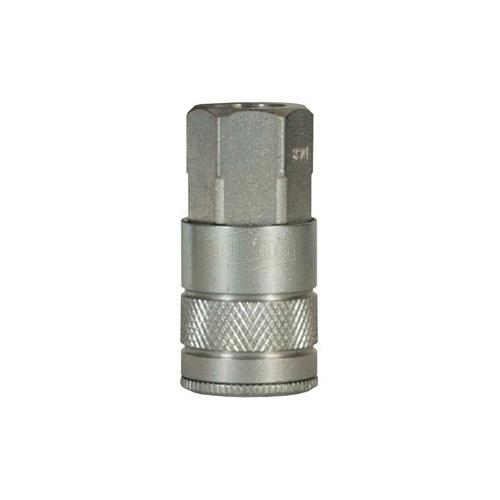

Dixon® 4FF6 D Interchange Semi-Automatic Pneumatic Coupler, 1/2 x 3/4 in, Quick-Connect x FNPT, Steel

  • TIEPN: DVC 4FF6
  • MPN: 4FF6
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Dixon® Pneumatic Coupler, Interchange Semi-Automatic, Series: D, Fitting/Connector Type: Coupler, 1/2 x 3/4 in Nominal, Quick-Connect x FNPT, 1-3/16 in Hex, 500 psi, -40 to 250 deg F, Steel, Polished Chrome, 1.24 in OD x 3.15 in L

Dimensions      :      1.24 in OD x 3.15 in L
Finish      :      Polished Chrome
Hex Size      :      1-3/16 in
Length      :      3.15 in
Series      :      D Series
Temperature Rating      :      -40 to 250 deg F
Type      :      Interchange Semi-Automatic
Nominal Size      :      1/2 x 3/4 in
End Style      :      Quick-Connect x FNPT
Pressure Rating      :      500 psi
Material      :      Steel
Domestic/Import      :      Domestic
  • Machined components are manufactured using solid bar stock
  • 91 cfm flow rate
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard
  • Steel sleeve and steel tubular valve
