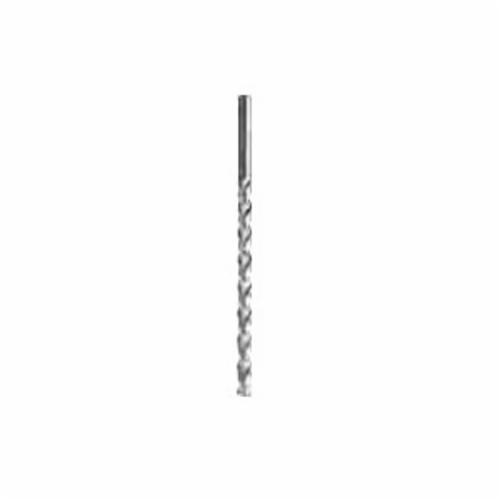

Precision Twist Drill Extra Length Drill, General Purpose, Series: QC1290P, 29/64 in Drill Size - Fraction, 0.4531 in Drill Size - Decimal Inch, 12 in Overall Length, 10XD Cutting Depth, 2 Flutes, Parabolic Flute, 9 in Flute Length, 29/64 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened Steel, Tempered Steel, Graphite/Malleable Cast Iron, Free Machining Stainless Steel, Ferritic + Austenitic and Martensitic, ANSI Specifications Met, No Through Coolant (Yes/No)
| Cutting Depth |
: |
10XD |
| Cutting Direction |
: |
Right Hand |
| Cutting Edge Material |
: |
HSS |
| Finish |
: |
Bright |
| Flute Length |
: |
9 in |
| Flute Type |
: |
Parabolic |
| Number of Flutes |
: |
2 |
| Point Angle |
: |
135 deg |
| Point Type |
: |
Split |
| Series |
: |
QC1290P |
| Shank Size |
: |
29/64 in |
| Shank Type |
: |
Straight |
| Specifications Met |
: |
ANSI |
| Type |
: |
General Purpose |
| Drill Size - Fraction |
: |
29/64 in |
| Drill Size - Decimal Inch |
: |
0.4531 in |
| Overall Length |
: |
12 in |
| Material |
: |
HSS |
| Applicable Materials |
: |
Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened Steel, Tempered Steel, Graphite/Malleable Cast Iron, Free Machining Stainless Steel, Ferritic + Austenitic and Martensitic |
| Through Coolant (Yes/No) |
: |
No |
- Heavy duty parabolic flute design for efficient chip removal
- Allows greater drilling depths in one pass
- Low thrust design self-centering split point for easier penetration
- Bright finish improves chip flow in soft or non-ferrous materials
