metabo® 601753620

metabo® 601753620 1-Phase Chamfer Edge Portable Beveling Tool, 5/8 in at 45 deg Max Bevel, 0 to 90 deg Bevel Angle, 12000 rpm Speed, 2.25 hp

  • TIEPN: MTT 601753620
  • MPN: 601753620
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

metabo® Beveling Tool, 1-Phase Chamfer Edge Portable, Bare Tool, 5/8 in at 45 deg Maximum Bevel, 0 to 90 deg Bevel, 3 Inserts, 12000 rpm Speed, 2.25 hp, 120 V, 14.2 A, Die-Cast Aluminum Housing Material, 157-1/2 in Corded Cord, Lock-On Switch Control, 19-13/32 in L x 8-3/16 in W x 11-1/2 in H Dimensions

Amperage Rating      :      14.2 A
Control Type      :      Lock-On Switch
Cord Type      :      157-1/2 in Corded
Dimensions      :      19-13/32 in L x 8-3/16 in W x 11-1/2 in H
Housing Material      :      Die-Cast Aluminum
Number of Inserts      :      3
Tool/Kit      :      Bare Tool
Type      :      1-Phase Chamfer Edge Portable
Voltage Rating      :      120 V
Maximum Bevel      :      5/8 in at 45 deg
Bevel Angle      :      0 to 90 deg
Speed      :      12000 rpm
Horsepower      :      2.25 hp

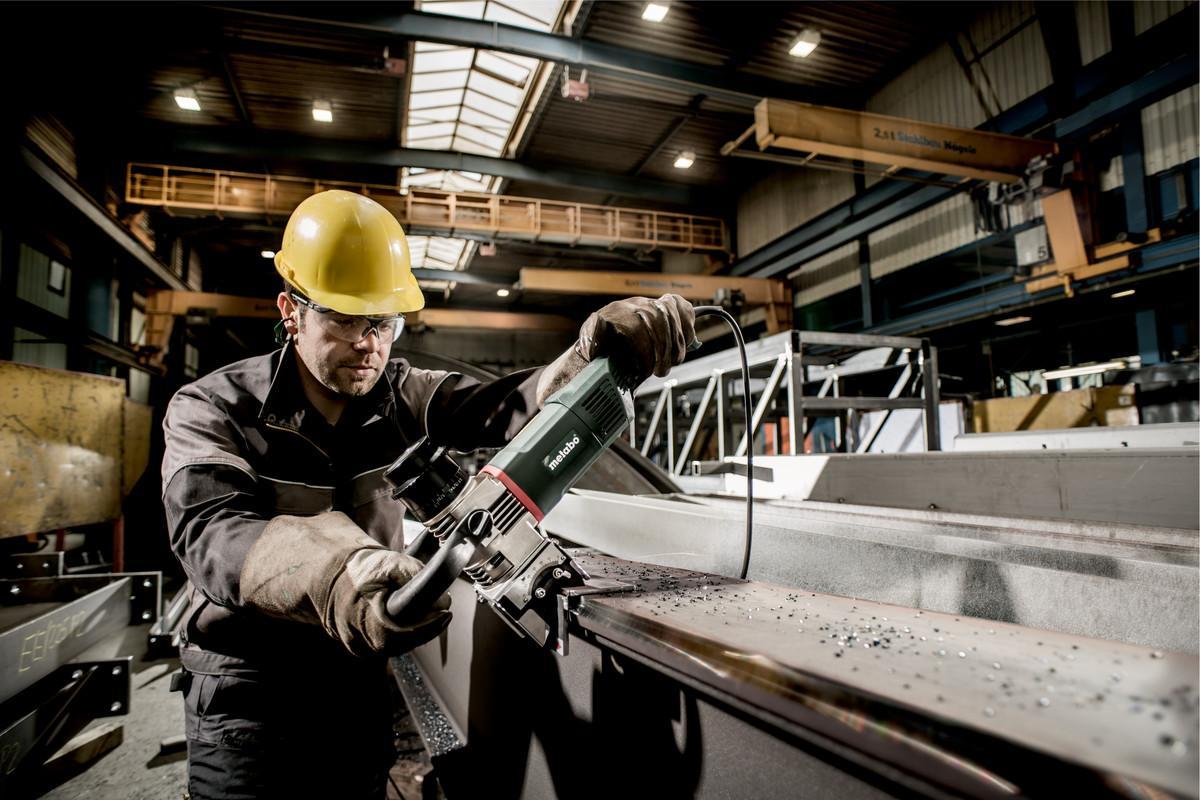

  • Metal beveling tool for chamfer heights up to 15 mm for weld seam preparation

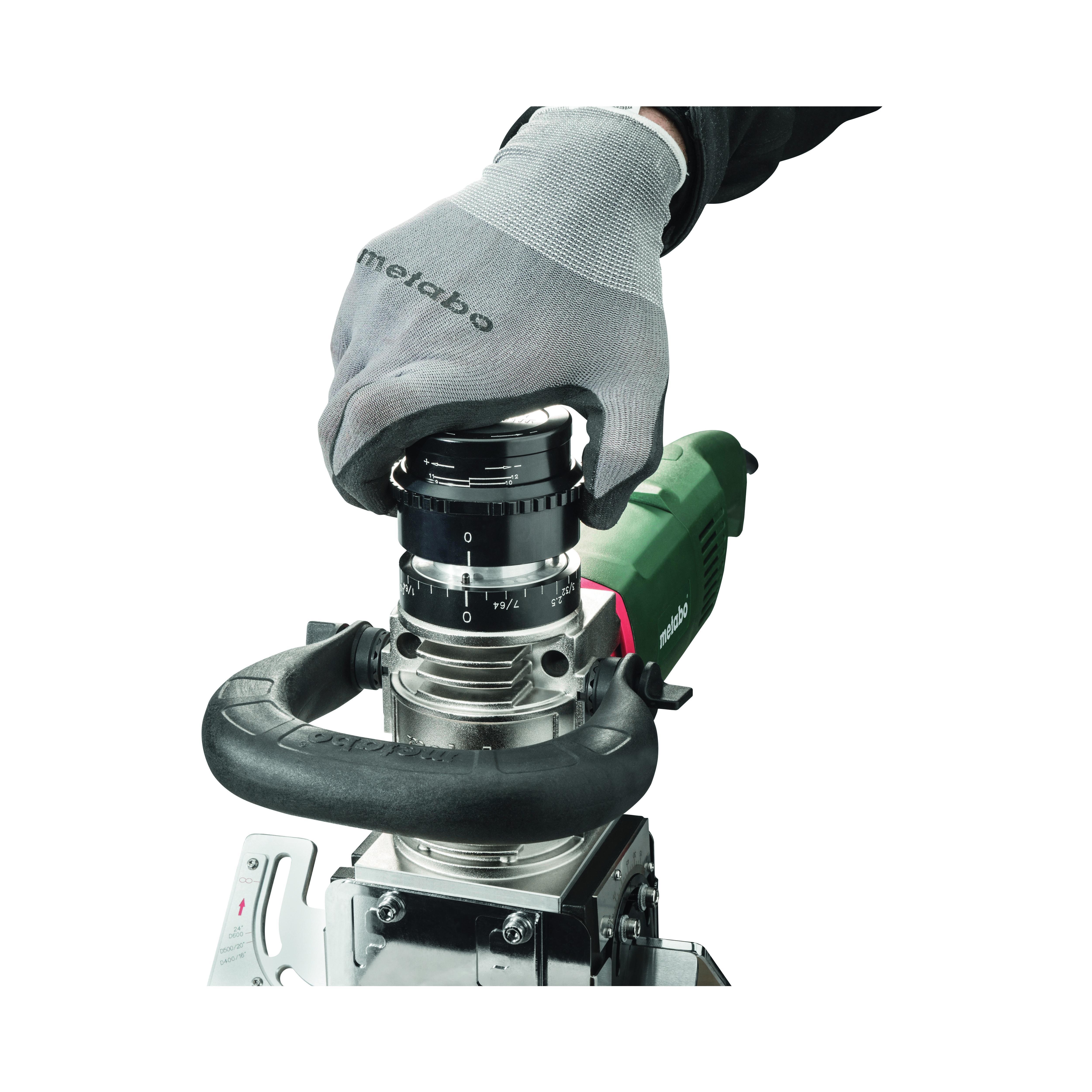

  • One-touch controller - patented, tool free setting of the cutting depth in 0.1 in steps, stop points for short setting times and protection against unintentional adjustment of the cutting depth when working
  • Precise setting of chamfer angle directly using the guide plate

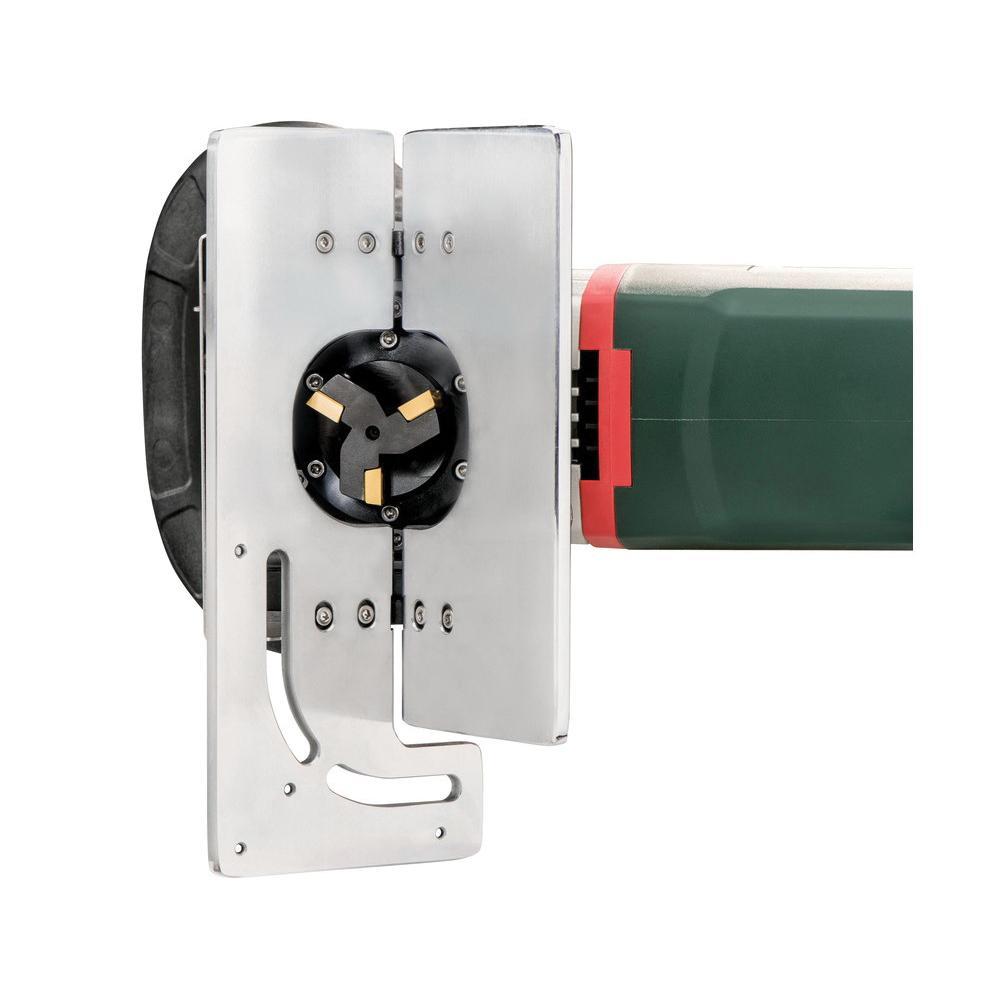

  • Universal carbide burr with three carbide inserts for all chamfer angles from 0 to 90 deg
  • Controlled work with large surface guide plates
  • Stop roller to guide along pipes for easy weld seam preparation
  • Bail handle adjusts without tools for secure, even guiding
  • Long life motor with patented dust protection for long service life
  • Electronic overload protection, soft start and restart protection
  • Protection for users with metal sheet sides to deflect chips
