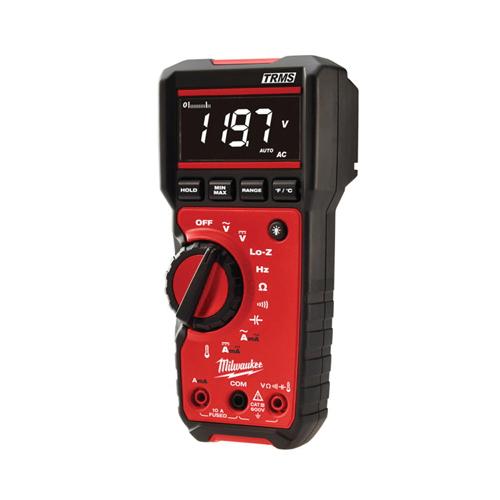

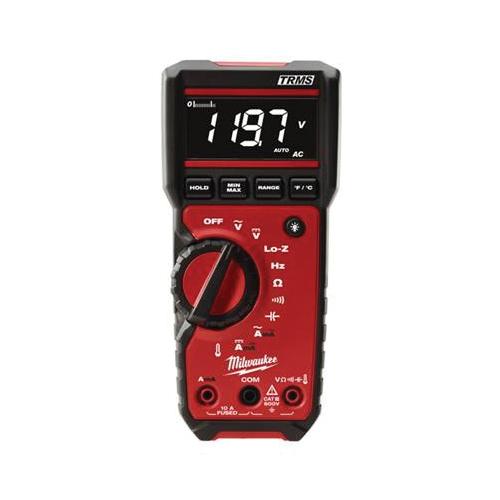

The Milwaukee digital multimeter is a heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional electrician, the 2217-20 offers rugged over-molding for increased durability and grip, a large white on black display for clearer readings, a slide rail system to add proprietary accessories and over-molded dial for easy one handed use. In addition, the new model meets the safety specifications required by the electrical user.
Milwaukee® Digital Multimeter, 6 mV to 600 VAC, 600 mV to 600 VDC, 10 A, 10 Hz to 50 kHz Frequency, 40 mOhm Resistance, Safety Rating: CAT III 600 VAC, 1000 uF Capacitance, +/-0.5% of Reading + 2 Digits Accuracy, LCD Display, AA Alkaline Battery, Yes Peak Hold, -40 to 752 deg F, Polycarbonate/Rubber Overmold, Black/Red
| Accuracy | : | +/-0.5% of Reading + 2 Digits |
| Battery Type | : | AA Alkaline |
| Capacitance | : | 1000 uF |
| Color | : | Black/Red |
| Frequency Rating | : | 10 Hz to 50 kHz |
| Material | : | Polycarbonate/Rubber Overmold |
| Peak Hold | : | Yes |
| Safety Rating | : | CAT III 600 VAC |
| Temperature Rating | : | -40 to 752 deg F |
| Voltage Rating | : | 6 mV to 600 VAC, 600 mV to 600 VDC |
| Amperage Rating | : | 10 A |
| Resistance | : | 40 mOhm |
| Display Type | : | LCD |
- Wide voltage range to 600 VAC/VDC
- Auto range to millivolts
- True-RMS for accurate measurement in all applications
- Lo-z measurement to eliminate ghost voltage
- Frequency measurements from 10 Hz to 50 kHz
- Current measurement to 10 A AC/DC
- High contrast, white on black display with backlight for easy reading
- Rugged over-molding increases durability and user grip
