Louisville® FE3216-E03E34
send Send print Print

Louisville® FE3216-E03E34

Louisville® FE3216-E03E34 FE3200 Extra Heavy Duty Multi-Section Professional Extension Ladder With Combination Pole Grip and Cable Hook, 16 ft OAL, ANSI Code: Type IA, 300 lb Load, Fiberglass, 12 in Adjustable Increments

  • TIEPN: LLI FE3216-E03E34
  • MPN: FE3216-E03E34
  • UPC: 728865055101
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Extra Heavy Duty Multi-Section Professional, Series: FE3200, 16 ft Overall Length, ANSI Code: Type IA, 300 lb Load, Fiberglass, 15 ft 8 in Maximum Working Length, 8 ft Section Length, 12 in Adjustable Increments, 17-1/16 in Outside Shoe Base Width, Mar-Resistant Rail, Swivel Safety Shoe

Maximum Working Length      :      15 ft 8 in
Outside Shoe Base Width      :      17-1/16 in
Rail Type      :      Mar-Resistant
Section Length      :      8 ft
Series      :      FE3200
Shoe Type      :      Swivel Safety
Type      :      Extra Heavy Duty Multi-Section Professional
Overall Length      :      16 ft
ANSI Code      :      Type IA
Load Capacity      :      300 lb
Material      :      Fiberglass
Adjustable Increments      :      12 in
  • Mar-resistant rail end caps, QuickLatch™ rung lock for better secure operation
  • The ladder features outside slide guides, D-shape rungs fully serrated for slip-resistant surface
  • Steel swivel safety shoes with metal shield to be used as tread down or in spike position
  • Direct rung rail connection
  • 3-1/4 in rail depth
  • 14-11/16 in base, 13-11/16 in fly inside width
  • 17-1/16 in base, 16-1/16 in fly outside width
  • 1-1/2 in step depth
  • 6-1/4 in stack height
  • 9 ft 2 in maximum standing height
  • 7-1/4 in approximate spread
  • 18-1/2 in bottom width
  • 7-3/4 in closed cubic feet
  • 100 in H x 18-1/2 in W x 7-1/4 in D closed dimension
  • 16 steps
  • 13 ft extended length

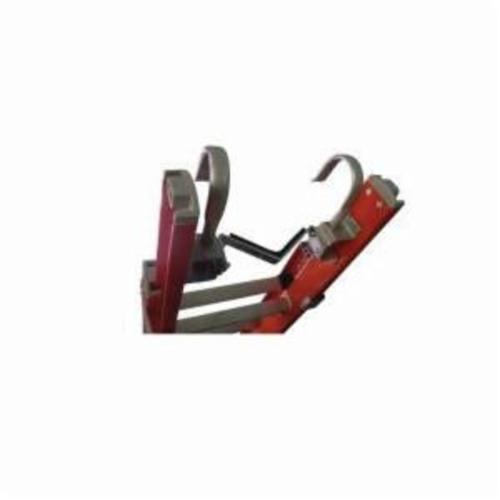

  • A rigid steel-plated V-shaped pole grip covered with rubber tread, combined with cable hook assembly

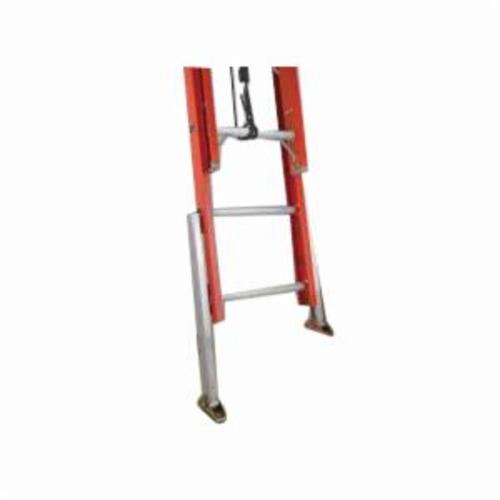

  • Leveler keeps ladder stabilized in perpendicular position on uneven terrain, adjustable up to a 9 in height differentia
