Seco Feedmax™ is our latest generation of high performance solid carbide drills. They offer a unique combination of state-of-the-art carbide, coating and geometry technology.

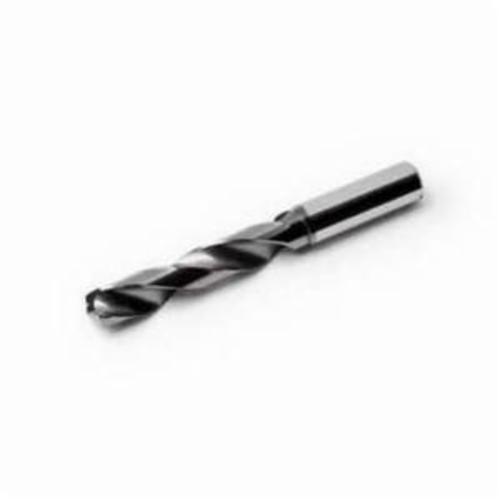

Seco Feedmax™ Shank Drill, Series: SD203A-N, Metric, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, 89 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 47 mm Flute Length, 10 mm Dia x 40 mm L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, DLC Coated, Applicable Materials: Aluminum and Non-Ferrous Materials
| Cutting Depth | : | 3XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Solid Carbide |
| Drill Diameter Measurement System | : | Metric |
| Flute Length | : | 47 mm |
| Flute Type | : | Spiral |
| Number of Flutes | : | 2 |
| Overall Length | : | 89 mm |
| Point Angle | : | 140 deg |
| Point Type | : | Self-Centering |
| Series | : | SD203A-N |
| Shank Size | : | 10 mm Dia x 40 mm L |
| Shank Type | : | Cylindrical |
| Drill Size - Metric | : | 9.5 mm |
| Drill Size - Decimal Inch | : | 0.374 in |
| Material | : | Solid Carbide |
| Finish | : | DLC Coated |
| Applicable Materials | : | Aluminum and Non-Ferrous Materials |
