SGS Pro® 10323
send Send print Print

SGS Pro® 10323

SGS Pro® 10323 Performance SF Imperial Bench and Pedestal Grinding Wheel, Radius End, Tree Radius (Shape SF) Head, 5/8 in Dia Head, 1 in L of Cut, 3 in OAL, Double Cut

  • TIEPN: ATA 10323
  • MPN: 10323
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

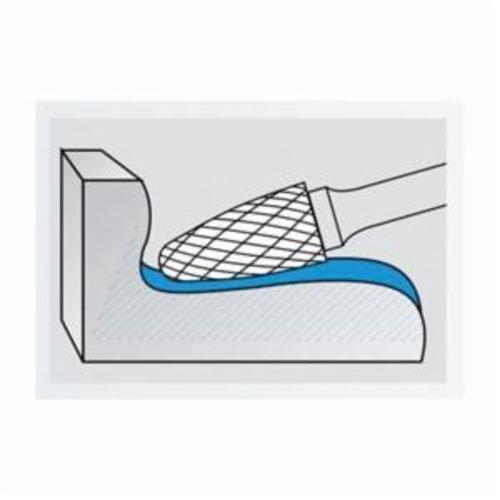

Omega burrs are deep, aggressive double cut burrs designed to handle your most challenging applications. With a deep, aggressive tooth pattern, Omega burrs allow for improved chip control and rapid stock removal in harder materials with minimal chatter.

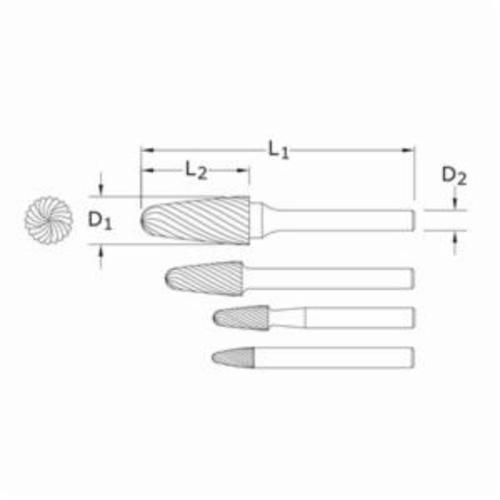

SGS Pro® Bench and Pedestal Grinding Wheel, Imperial, Series: Performance SF, Radius, 5/8 in Head Dia, 1 in Length of Cut, 3 in Overall Length, Tree Radius (Shape SF) Head Shape, Double Cut Type, 3/8 in Shank Dia, Solid Carbide Head, AlTiN Coated Head Coating, Applicable Materials: Non-Hardened Steel, Stainless Steel, Nickel, Cobalt, Titanium, Brass, Copper, Zinc and Cast Iron, SF-6 DDC Industry Specification

Applicable Materials      :      Non-Hardened Steel, Stainless Steel, Nickel, Cobalt, Titanium, Brass, Copper, Zinc and Cast Iron
Head Coating      :      AlTiN Coated
Head Material      :      Solid Carbide
Industry Specification      :      SF-6 DDC
Series      :      Performance SF
Shank Diameter      :      3/8 in
Type      :      Imperial
End Type      :      Radius
Head Shape      :      Tree Radius (Shape SF)
Head Diameter      :      5/8 in
Length of Cut      :      1 in
Overall Length      :      3 in
Cut Type      :      Double
  • Enhanced geometry and deep flute configuration for increased tooth strength
  • Longer tool life v/s conventional burrs
  • Maximum stock removal
  • Improved productivity and cost savings
  • CNC machined - high consistent quality
  • Manufactured to strict quality control standards - incorporates 100% inspection of the brazed joints
