Dixon® D3M2

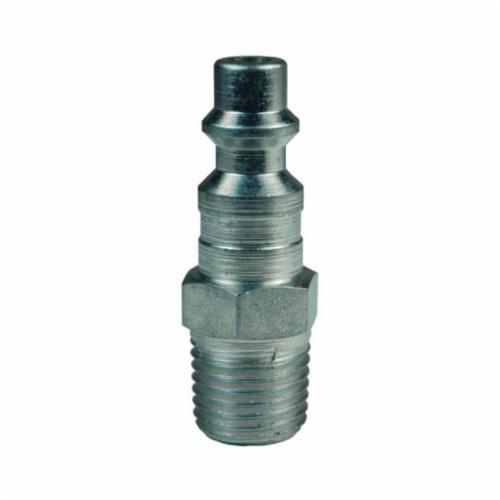

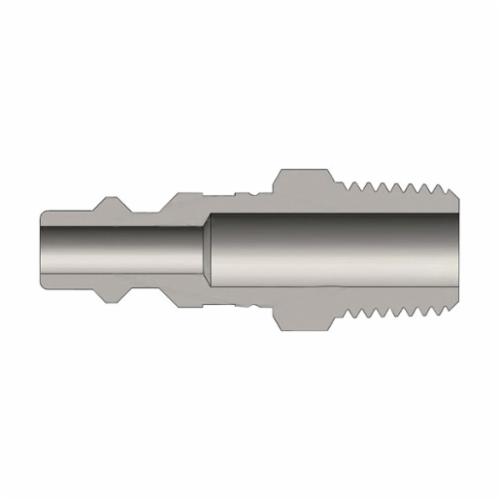

Dixon® D3M2 DF Series Industrial Interchange Pneumatic Nipple, 3/8 x 1/4 in Nominal, Quick-Disconnect Plug x MNPT, 500 psi Pressure, Steel

  • TIEPN: DVC D3M2
  • MPN: D3M2
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Dixon® Pneumatic Nipple, Industrial Interchange, Series: DF Series, 3/8 x 1/4 in Nominal, Quick-Disconnect Plug x MNPT End Style, 11/16 in Hex, 1.81 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, 0.79 in OD

Dimensions      :      0.79 in OD
Hex Size      :      11/16 in
Length      :      1.81 in
Series      :      DF Series
Temperature Rating      :      -40 to 250 deg F
Type      :      Industrial Interchange
Nominal Size      :      3/8 x 1/4 in
End Style      :      Quick-Disconnect Plug x MNPT
Pressure Rating      :      500 psi
Material      :      Steel
  • Machined components are manufactured using solid bar stock
