Weller® WD1
send Send print Print

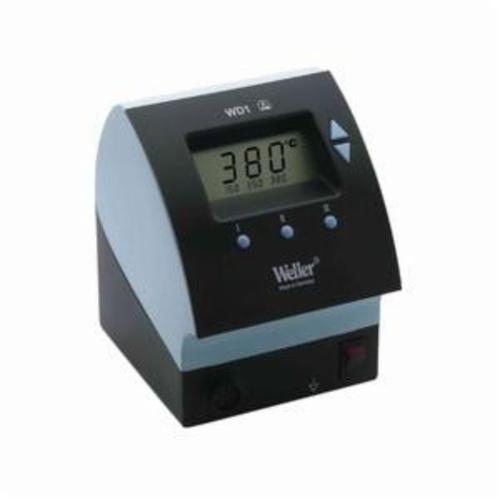

Weller® WD1

Weller® WD1 1-Channel Digital Power Unit, 95 W, 230 V, 50 to 450 deg C, T500 mA Fuse, For Use With WMRP Micro Soldering Pencils, Pre-Heat Plates, WMRT Thermal Tweezers and Solder Baths

  • TIEPN: WLR WD1
  • MPN: WD1
  • UPC: 037103208071
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Weller® Power Unit, 1-Channel Digital, For Use With: WMRP Micro Soldering Pencils, Pre-Heat Plates, WMRT Thermal Tweezers and Solder Baths, 95 W, 230 V, 50 to 450 deg C, T500 mA Fuse, 134 mm L x 108 mm W x 147 mm H

Dimensions      :      134 mm L x 108 mm W x 147 mm H
Type      :      1-Channel Digital
Suitable For Use With      :      WMRP Micro Soldering Pencils, Pre-Heat Plates, WMRT Thermal Tweezers and Solder Baths
Specifications      :      95 W, 230 V, 50 to 450 deg C, T500 mA Fuse
  • Single port digital soldering station, power unit only
  • 3 "Radio buttons" allows the pre-set of frequently used temperature settings
  • Special functions menu allows access to features
  • Setback, lockout, temperature window, F/C switching, standby, auto-off time
  • Large high contrast LCD display offers more information at a glance
  • USB port for control, evaluation and documentation via PC
  • Equipotential bonding via 3.5 mm pawl socket on back of device
  • +/- 6 deg F temperature stability, +/- 9 deg F temperature accuracy
  • Protection class 1
  • Suitable for use with leaded and lead free solder applications
  • Automatic tool detection and activation of corresponding control parameters
  • Type F schuko plug
  • ESD safe
