Pramet 6751638
send Send print Print

Pramet 6751638

Pramet 6751638 Negative Milling Insert, ANSI Code: SNHN 1504ENEN:H10, SNHN Insert, 1504 Insert, Carbide, Squared Shape, Material Grade: H10

  • TIEPN: PTD 6751638
  • MPN: 6751638
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

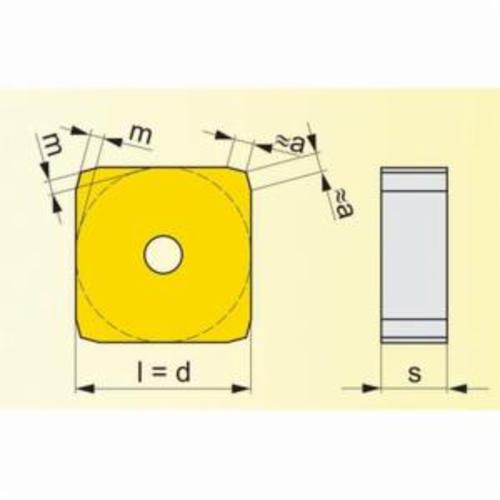

Pramet Milling Insert, Negative, SNHN Insert, 1504 Insert, Squared, 15.875 mm Inscribed Circle, 4.76 mm Thickness, 15.875 mm Width, 15.875 mm Length, 0 deg Lead Angle, ANSI Code: SNHN 1504ENEN:H10, ISO Code: SNHN 1504ENEN, Ambidextrous Hand, Carbide, Uncoated, Material Grade: H10, Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloy Material Application

ANSI Code      :      SNHN 1504ENEN:H10
Finish      :      Uncoated
Hand of Insert      :      Ambidextrous
ISO Code      :      SNHN 1504ENEN
Inscribed Circle      :      15.875 mm
Lead Angle      :      0 deg
Length      :      15.875 mm
Thickness      :      4.76 mm
Type      :      Negative
Width      :      15.875 mm
Insert Style      :      SNHN
Insert Size      :      1504
Material      :      Carbide
Material Application      :      Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloy
Shape      :      Squared
Material Grade      :      H10
