Louisville® FE3228-E30
send Send print Print

Louisville® FE3228-E30

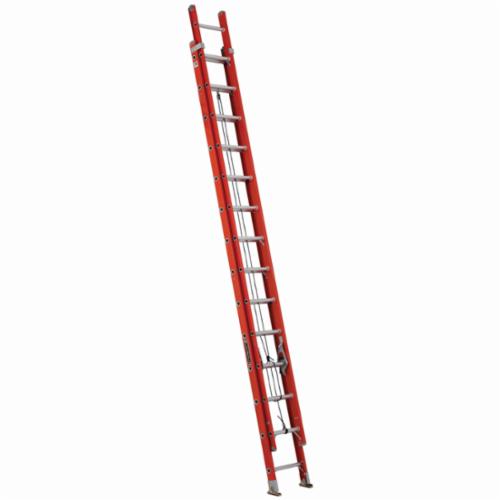

Louisville® FE3228-E30 FE3200 Extra Heavy Duty Multi-Section Professional Extension Ladder With Wheel Spurs, 28 ft OAL, ANSI Code: Type IA, 300 lb Load, Fiberglass, 12 in Adjustable Increments

  • TIEPN: LLI FE3228-E30
  • MPN: FE3228-E30
  • UPC: 728865090782
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Extra Heavy Duty Multi-Section Professional, Series: FE3200, 28 ft Overall Length, ANSI Code: Type IA, 300 lb Load, Fiberglass, 27 ft 5 in Maximum Working Length, 14 ft Section Length, 12 in Adjustable Increments, 17-1/16 in Outside Shoe Base Width, Mar-Resistant Rail, Swivel Safety Shoe

Maximum Working Length      :      27 ft 5 in
Outside Shoe Base Width      :      17-1/16 in
Rail Type      :      Mar-Resistant
Section Length      :      14 ft
Series      :      FE3200
Shoe Type      :      Swivel Safety
Type      :      Extra Heavy Duty Multi-Section Professional
Overall Length      :      28 ft
ANSI Code      :      Type IA
Load Capacity      :      300 lb
Material      :      Fiberglass
Adjustable Increments      :      12 in
  • Mar-resistant rail end caps, QuickLatch™ rung lock for better secure operation
  • The ladder features outside slide guides, D-shape rungs fully serrated for slip-resistant surface
  • Steel swivel safety shoes with metal shield to be used as tread down or in spike position
  • Direct rung rail connection
  • 3-1/4 in rail depth
  • 14-11/16 in base, 13-11/16 in fly inside width
  • 16-1/16 in fly outside width
  • 1-1/2 in step depth
  • 6-1/4 in stack height
  • 20 ft 10 in maximum standing height
  • 7-1/4 in approximate spread
  • 18-1/2 in bottom width
  • 13-1/3 in closed cubic feet
  • 172 in H x 18-1/2 in W x 7-1/4 in D closed dimension
  • 28 steps
  • 25 ft extended length
  • Wheel spurs are available as an alternative to our standard cast swivel safety shoe
