Louisville® FE4216HD-E03E34
send Send print Print

Louisville® FE4216HD-E03E34

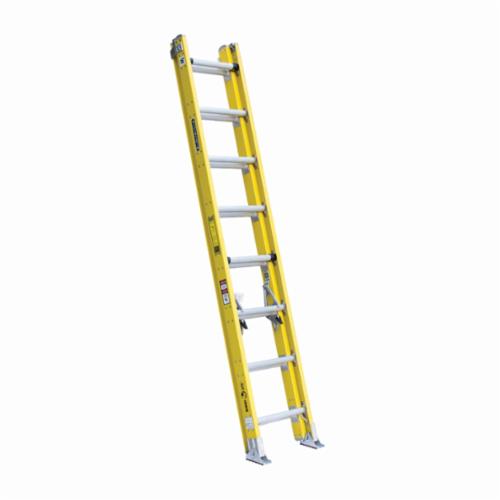

Louisville® FE4216HD-E03E34 FE4000HD Extra Heavy Duty Multi-Section Professional Extension Ladder With Combination Pole Grip and Cable Hook, Automatic Adjusting Leveler, 16 ft OAL, ANSI Code: Type IAA, 375 lb Load, Fiberglass

  • TIEPN: LLI FE4216HD-E03E34
  • MPN: FE4216HD-E03E34
  • UPC: 728865103406
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Extra Heavy Duty Multi-Section Professional, Series: FE4000HD, 16 ft Overall Length, ANSI Code: Type IAA, 375 lb, Fiberglass, 15 ft 8 in Maximum Working Length, 8 ft Section Length, 17-3/4 in Outside Shoe Base Width, Mar-Resistant Rail, Aluminum Swivel Safety Shoe

Maximum Working Length      :      15 ft 8 in
Outside Shoe Base Width      :      17-3/4 in
Rail Type      :      Mar-Resistant
Section Length      :      8 ft
Series      :      FE4000HD
Shoe Type      :      Aluminum Swivel Safety
Type      :      Extra Heavy Duty Multi-Section Professional
Overall Length      :      16 ft
ANSI Code      :      Type IAA
Load Capacity      :      375 lb
Material      :      Fiberglass
  • Mar-resistant rail end caps, QuickLatch™ rung lock for better secure operation
  • The ladder features outside slide guides, D-shape rungs fully serrated for slip-resistant surface
  • Aluminum swivel safety shoes with full metal boot to be used as tread down or in spike position
  • 3-1/4 in rail depth
  • 15-3/8 in base, 13-11/16 in fly inside width
  • 16-1/16 in fly outside width
  • 1-1/2 in step depth
  • 6 in stack height
  • 9 ft 2 in maximum standing height
  • 6-1/2 in approximate spread
  • 18-3/4 in bottom width
  • 7-2/9 in closed cubic feet
  • 102-3/8 in H x 18-3/4 in W x 6-1/2 in D closed dimension
  • 16 steps
  • 13 ft extended length
  • A rigid steel-plated V-shaped pole grip covered with rubber tread, combined with cable hook assembly
  • Leveler keeps ladder stabilized in perpendicular position on uneven terrain, adjustable up to a 9 in height differential
