Seco 02960688

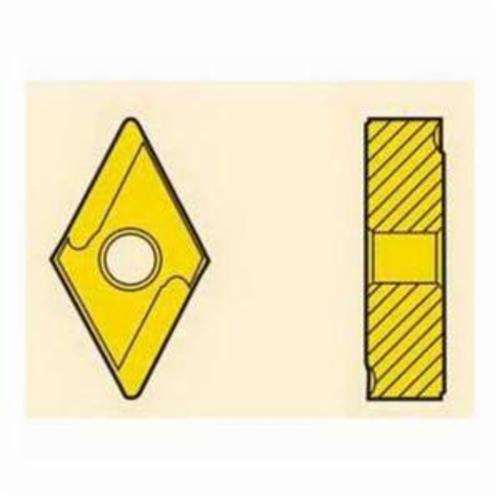

Seco 02960688 Turning Insert, ANSI Code: DNMG442R-UX TP2501, DNMG Insert, Material Grade: P, 150608 Insert, Diamond Shape, 15 Seat, Negative/Positive Rake, Right Hand Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501

  • TIEPN: CBL 17596
  • MPN: 02960688
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

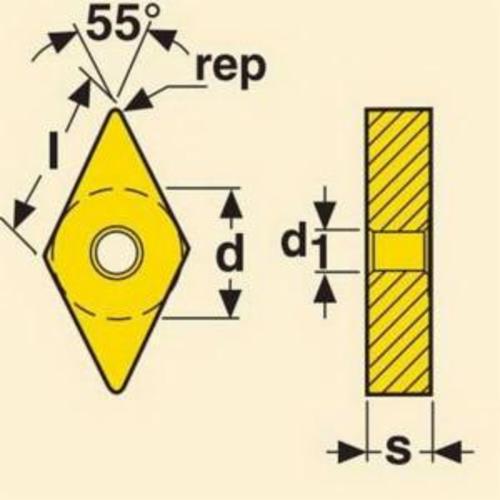

Seco Turning Insert, DNMG Insert, 150608 Insert, Diamond Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 15 Seat, Negative/Positive Rake, UX Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: DNMG442R-UX TP2501, ISO Code: DNMG150608R-UX TP2501, 55 deg Included Angle, 0 deg Relief Angle, Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

ANSI Code      :      DNMG442R-UX TP2501
Chipbreaker      :      UX
Corner Radius      :      0.8 mm
Finish      :      CVD-TiCN+Al2O3 Coated
Hole Diameter      :      5.15 mm
ISO Code      :      DNMG150608R-UX TP2501
Included Angle      :      55 deg
Inscribed Circle      :      12.7 mm
Maximum Depth of Cut      :      5.25 mm
Relief Angle      :      0 deg
Thickness      :      6.35 mm
Insert Style      :      DNMG
Material Grade      :      P
Insert Size      :      150608
Shape      :      Diamond
Seat Size      :      15
Rake      :      Negative/Positive
Cutting Direction      :      Right Hand
For Use On      :      Steel
Material      :      Carbide
