Pramet 6751713

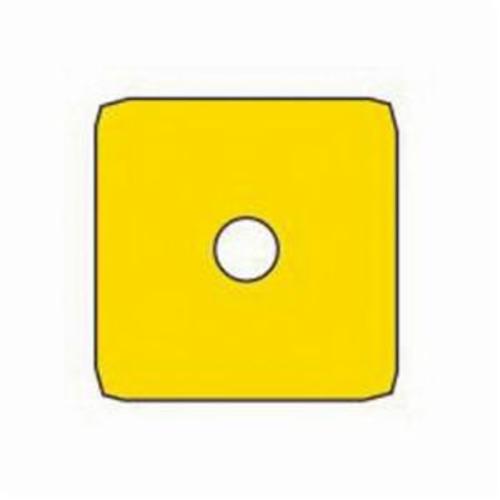

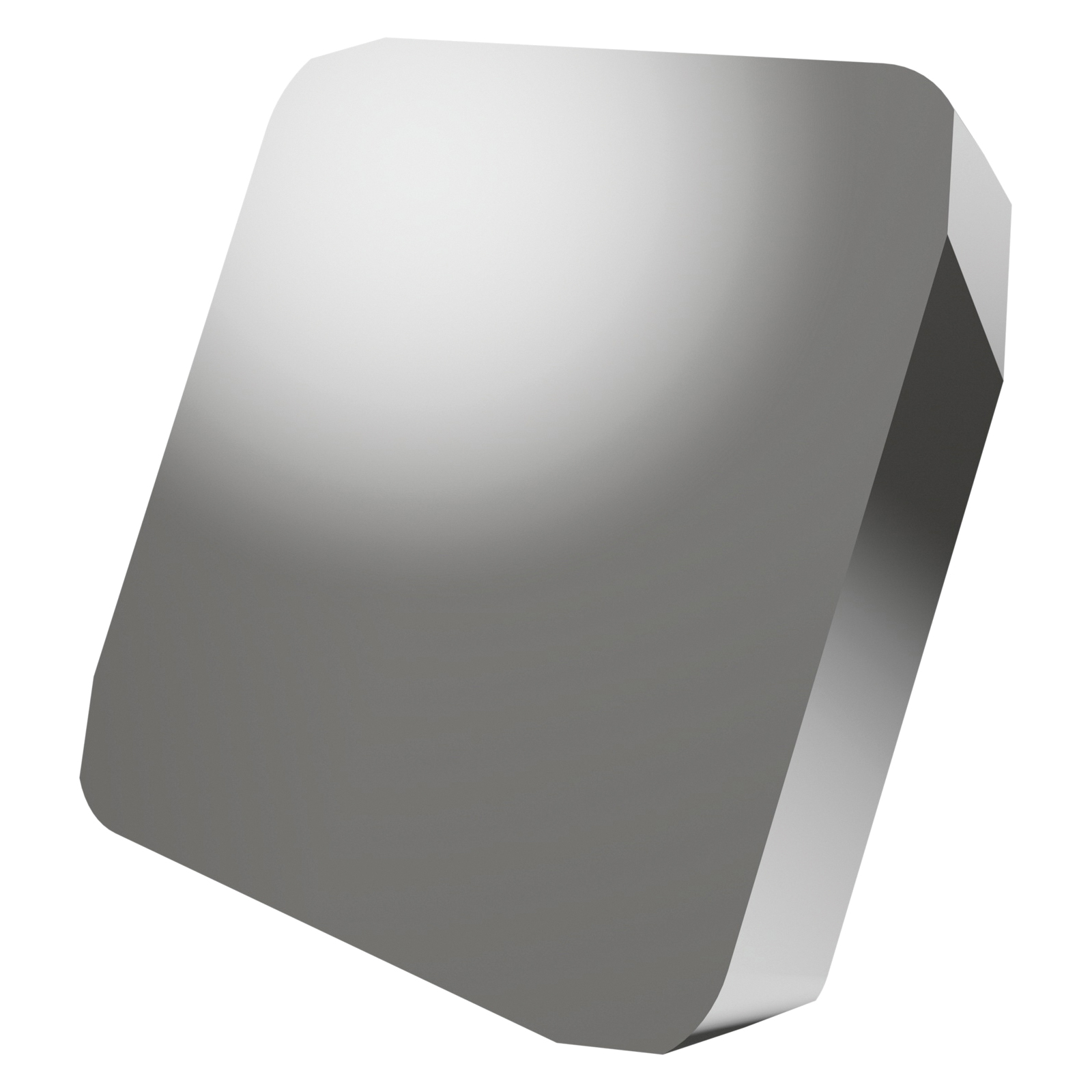

Pramet 6751713 Positive Milling Insert, ANSI Code: SPKN 1203EDER:H10, SPKN Insert, 1203 Insert, Carbide, Squared Shape, Material Grade: H10

  • TIEPN: PTD 6751713
  • MPN: 6751713
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Single-sided milling insert SPKN 1203 with a plane rake surface, square for right hand cutting with a maximum depth of cut of 9 mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, H10 uncoated WC-Co carbide within ISO-grade range K15-K30 for machining of cast-iron.

Pramet Milling Insert, Positive, SPKN Insert, 1203 Insert, Squared, 12.7 mm Inscribed Circle, 3.18 mm Thickness, 12.7 mm Width, 12.7 mm Length, 11 deg Lead Angle, ANSI Code: SPKN 1203EDER:H10, ISO Code: SPKN 1203EDER, Right Hand, Carbide, Uncoated, Material Grade: H10, Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloy Material Application

ANSI Code      :      SPKN 1203EDER:H10
Finish      :      Uncoated
Hand of Insert      :      Right
ISO Code      :      SPKN 1203EDER
Inscribed Circle      :      12.7 mm
Lead Angle      :      11 deg
Length      :      12.7 mm
Thickness      :      3.18 mm
Type      :      Positive
Width      :      12.7 mm
Insert Style      :      SPKN
Insert Size      :      1203
Material      :      Carbide
Material Application      :      Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloy
Shape      :      Squared
Material Grade      :      H10
