This premier drill combines power and precision with a speed range of 108-1800 rpm to handle virtually any drilling application. Driven by a sturdy 3 hp motor, the drilling capabilities of up to 1-7/8 in. Exceptional support is provided by a large 5-1/2 in steel column. Power down feed engagement is controlled by one selector switch which makes this the perfect drill press for any shop.

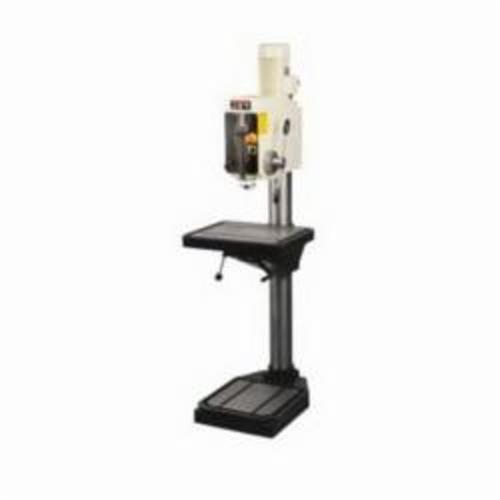

JET® Floor Drill Press, Arboga Geared Head, 26 in Swing, MT-4 Spindle Taper, 8 in Spindle Travel, 105/162/240/360/528/805/1175/1800 rpm Spindle Speed, 8 Spindle Speed, 33 in Spindle to Table Distance, 13 in Spindle to Column Distance, 15-3/4 x 19-3/4 in Table, 550 lb Table Load, 45 deg Table Tilt, 23 x 28 in Base, 5-1/2 in Column Dia, 3 hp, 220 VAC, 9.1 A, 23 in L x 28 in W x 81 in H

• Fiber and steel gears, which do not require an oil bath, allow for easier speed changes
• No-volt release, prevents spindle start up when power returns after shut down
• Adjustable taper bearings mounted in the end of the quill
• Helical gears for smear, quiet operation
• Quick-release drill ejector
• English or metric depth gauge
• Machined, T-slotted base plate
• Steel column
• Extra long quill movement
• Fully enclosed spindle
• Large T-slotted table
• Telescoping safety spindle guard

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JET_354040_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JET_354040_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JET_354040_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JET_354040_Specification_Sheet.pdf
