Dormer 6821295

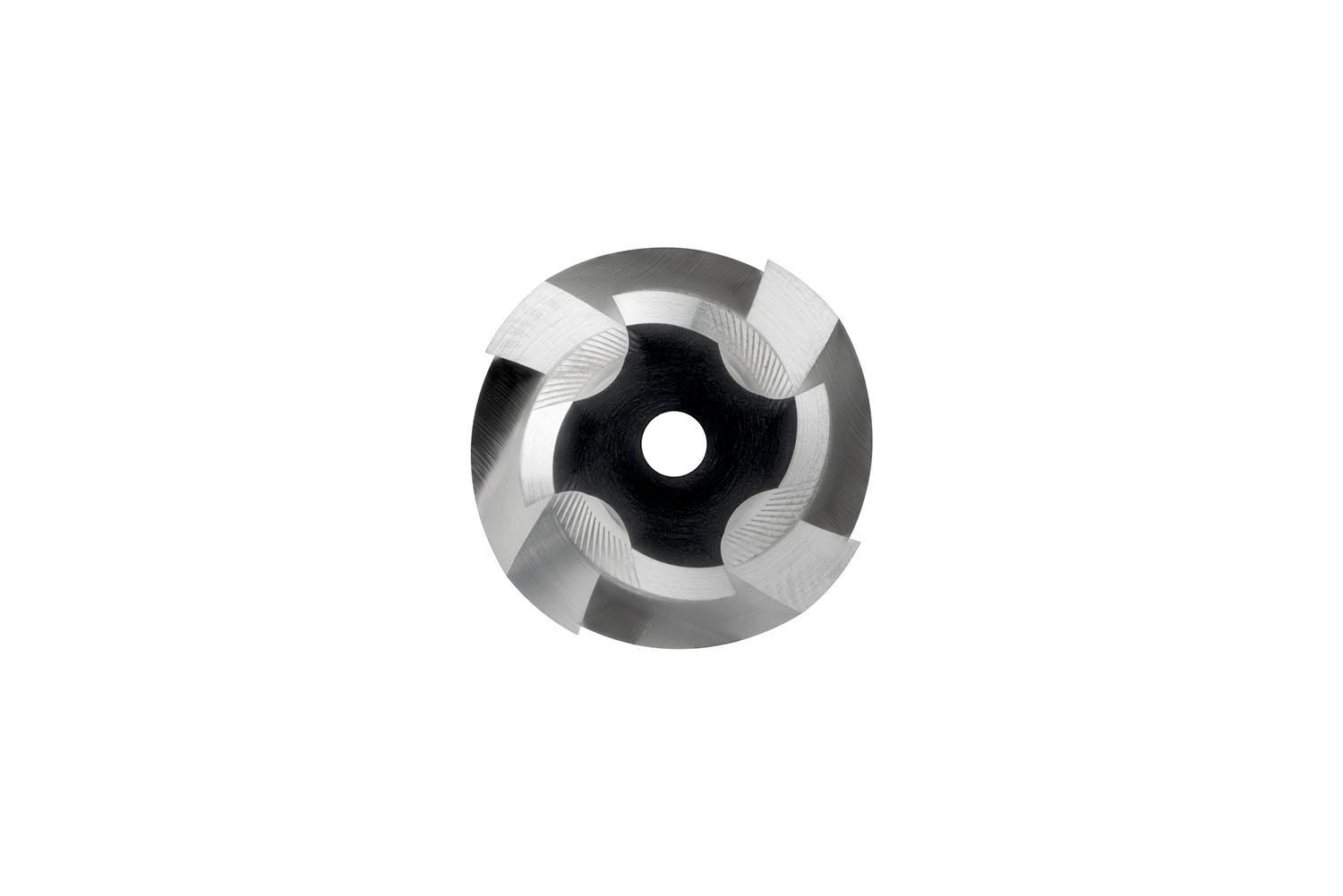

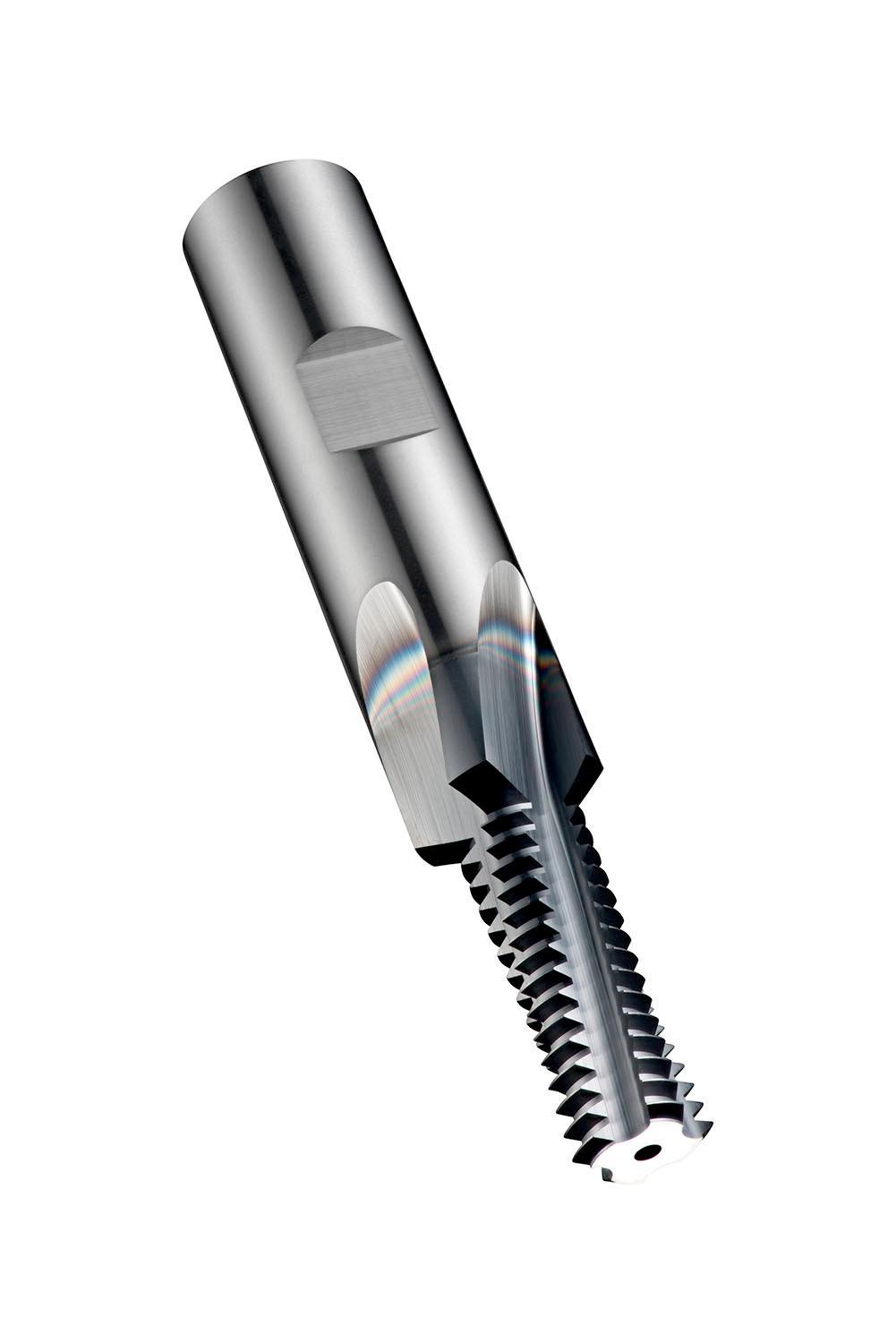

Dormer 6821295 J205 Spiral Flute Thread Milling Cutter, M14x2 Thread, 92 mm OAL, 16 mm Dia Shank

  • TIEPN: PTD 46821295
  • MPN: 6821295
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Dormer Thread Milling Cutter, Spiral Flute, Series: J205, M14x2, 11.6 mm Cutting Dia, 30 mm Length of Cut, 92 mm Overall Length, 16 mm Shank Dia, Carbide

Cutting Diameter      :      11.6 mm
Length of Cut      :      30 mm
Material      :      Carbide
Series      :      J205
Type      :      Spiral Flute
Thread Size      :      M14x2
Overall Length      :      92 mm
Shank Diameter      :      16 mm
  • 10 deg right hand spiral, oil feed
  • 4 Teeth
  • HM material
  • Alcrona Pro coated finish
  • 20 Lifecycle
  • 2xd Cutting depth
  • 32.2 mm Flute length
  • Internal coolant
  • Internal thread
  • Applicable to aluminum, cast iron, copper, graphite, magnesium, nickel, steel, stainless steel and titanium
