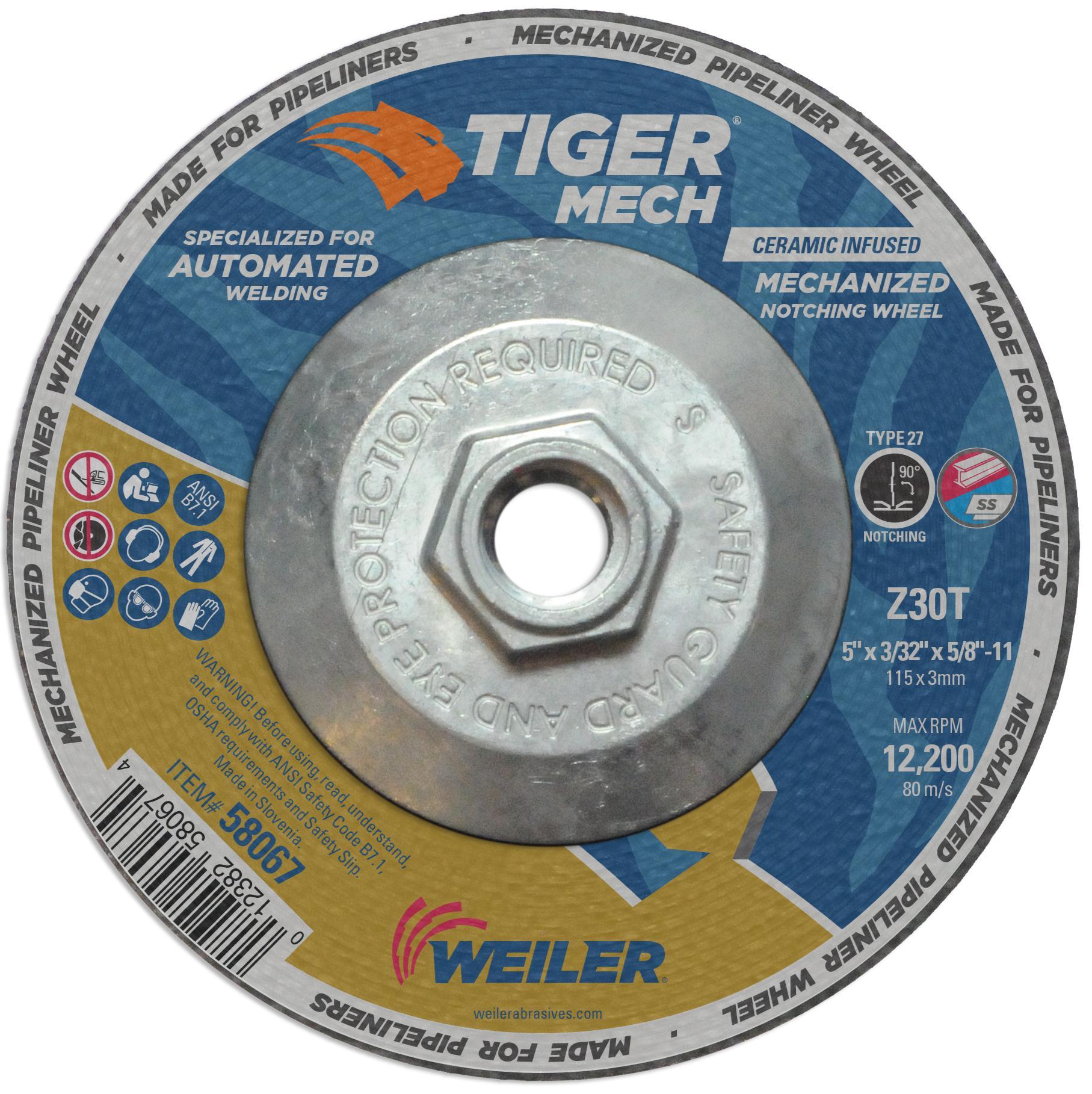

Weiler® 5 in Tiger® mech wheels are designed for notching applications on mechanical pipe welds. These max-performance wheels are thinner than standard pipe notching wheels, allowing the operator to grind the bead without widening or scarring the bevel.
Tiger® Cutting Wheel, 90 deg Notching Maximum Performance, 5 in Wheel Dia, 3/32 in Wheel Thickness, 5/8-11 UNC Center Hole, 30 Grit, Ceramic/Zirconia Alumina Abrasive, Wheel Type Number: Type 27, 12200 rpm Maximum, Resin Bond, Applicable Materials: Steel, Wheel Hardness: T, ANSI B7.1 Specifications Met
| Applicable Materials | : | Steel |
| Bond Type | : | Resin |
| Maximum Speed | : | 12200 rpm |
| Specifications Met | : | ANSI B7.1 |
| Type | : | 90 deg Notching Maximum Performance |
| Wheel Hardness | : | T |
| Wheel Type Number | : | Type 27 |
| Wheel Diameter | : | 5 in |
| Wheel Thickness | : | 3/32 in |
| Center Hole Size | : | 5/8-11 UNC |
| Grit | : | 30 |
| Abrasive Material | : | Ceramic/Zirconia Alumina |
- Optimized performance - designed specifically to grind starts and stops on J and K bevels
- Superior life and cut - a blend of zirconia alumina and ceramic grains bite into the bead fast while the strong bond delivers long wheel life
- Small 5/8-11 nutted metal hub reduces gouging of the workpiece and allows for 30% more usable surface area of the wheel in addition to providing quick spin-on, spin-off changeover of a standard hub
- Designed for use on right angle grinders
