Louisville® FH1007
send Send print Print

Louisville® FH1007

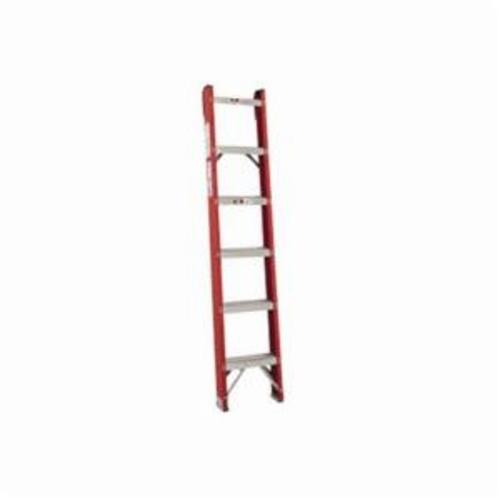

Louisville® FH1007 FH1000 1-Stage Heavy Duty Single Extension Ladder, 7 ft OAL, 300 lb Load, Fiberglass, Type IA

  • TIEPN: LLI FH1007
  • MPN: FH1007
  • UPC: 728865024558
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, 1-Stage Heavy Duty Single, Series: FH1000, 7 ft Overall Length, ANSI Code: Type IA, 300 lb, Fiberglass, 4 ft 9 in Maximum Working Length, 7 ft Section Length, 15-1/8 in Outside Shoe Base Width, Non-Conductive Rail, Rubber Bumper Shoe

Maximum Working Length      :      4 ft 9 in
Outside Shoe Base Width      :      15-1/8 in
Rail Type      :      Non-Conductive
Section Length      :      7 ft
Series      :      FH1000
Shoe Type      :      Rubber Bumper
Type      :      1-Stage Heavy Duty Single
Overall Length      :      7 ft
ANSI Code      :      Type IA
Load Capacity      :      300 lb
Material      :      Fiberglass
  • Two pair of heavy duty steel gussets support bottom step
  • Aluminum angle feet with thick rubber tread on both legs to provide sure footing and stability
  • Rubber bumper for stability
  • Serrated aluminum steps
  • Steps are level when the ladder is set at 18 deg
  • Rubber bumper - ladder has parallel sides with thick rubber bumpers extending 6-inch down the side rails for protection of landing surface and stability
  • Double rivet step construction - each step secured with six, large headed, semi-tubular steel rivets for maximum strength
  • Ideal for getting to shelves with narrow aisles when standard ladders will not fit
  • Standard step rung
  • 3 in step depth
  • 3-1/8 in rail depth
  • 3-1/4 in closed cubic feet
  • 11 ft 4 in maximum reach
  • 83-7/8 in H x 15-1/5 in W x 3-1/4 in D closed
  • 15-1/5 in bottom width
  • 3-1/4 in base spread
  • 7 steps
