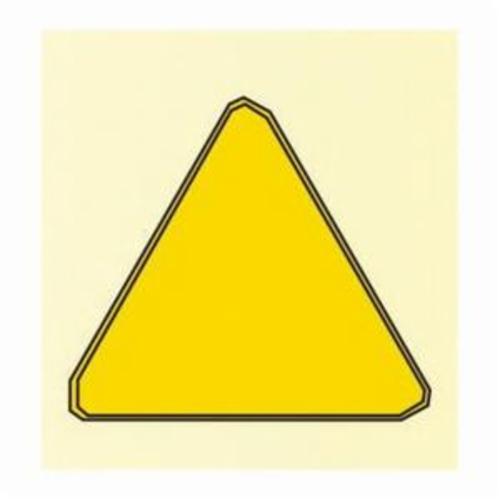

Single-sided milling insert TPKN 2204 with a plane rake surface, triangular for a maximum depth of cut of 17 mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, S45 uncoated WC-(Ti, Ta, Nb)C-Co carbide.

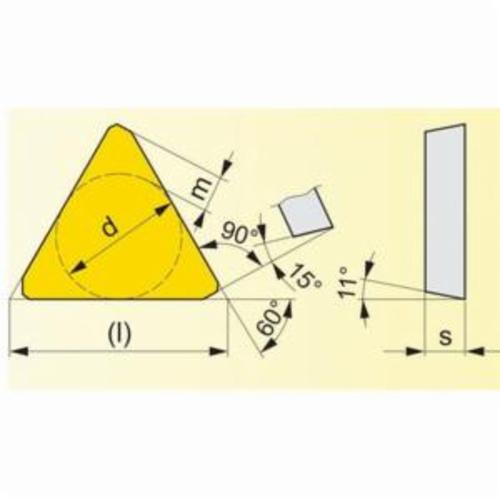

Pramet Milling Insert, Positive, TPKN Insert, 2204 Insert, Triangular, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 mm Length, 11 deg Lead Angle, ANSI Code: TPKN 2204PDSR:S45, ISO Code: TPKN 2204PDSR, Right Hand, Carbide, Uncoated, Material Grade: S45, Steel Material Application
| ANSI Code | : | TPKN 2204PDSR:S45 |
| Finish | : | Uncoated |
| Hand of Insert | : | Right |
| ISO Code | : | TPKN 2204PDSR |
| Inscribed Circle | : | 12.7 mm |
| Lead Angle | : | 11 deg |
| Length | : | 22 mm |
| Thickness | : | 4.76 mm |
| Type | : | Positive |
| Insert Style | : | TPKN |
| Insert Size | : | 2204 |
| Material | : | Carbide |
| Material Application | : | Steel |
| Shape | : | Triangular |
| Material Grade | : | S45 |
