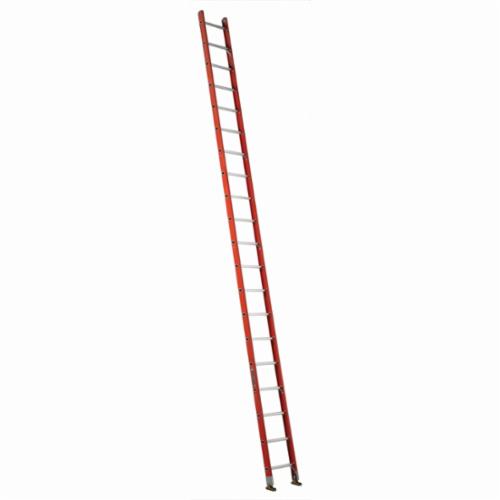

Louisville® FE3120

Louisville® FE3120 FE3100 Extra Heavy Duty Professional Shelf Single Extension Ladder, 20 ft OAL, ANSI Code: Type IA, 300 lb Load, Fiberglass, 12 in Adjustable Increments

  • TIEPN: LLI FE3120
  • MPN: FE3120
  • UPC: 728865101242
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Extra Heavy Duty Professional Shelf Single, Series: FE3100, 20 ft Overall Length, ANSI Code: Type IA, 300 lb Load, Fiberglass, 22 ft 8 in Maximum Working Length, 20 ft Section Length, 12 in Adjustable Increments, 17-11/16 in Outside Shoe Base Width, Mar-Resistant Rail, Swivel Safety Shoe

Maximum Working Length      :      22 ft 8 in
Outside Shoe Base Width      :      17-11/16 in
Rail Type      :      Mar-Resistant
Section Length      :      20 ft
Series      :      FE3100
Shoe Type      :      Swivel Safety
Type      :      Extra Heavy Duty Professional Shelf Single
Overall Length      :      20 ft
ANSI Code      :      Type IA
Load Capacity      :      300 lb
Material      :      Fiberglass
Adjustable Increments      :      12 in
  • Mar-resistant rail end caps, QuickLatch™ rung lock for better secure operation
  • The ladder features outside slide guides, D-shape rungs fully serrated for slip-resistant surface
  • Steel swivel safety shoes with metal shield to be used as tread down or in spike position
  • Direct rung rail connection
  • 3-1/4 in rail depth
  • 3-5/16 in inside width
  • 17-11/16 in outside width
  • 1-1/2 in step depth
  • 16 ft 2 in maximum standing height
  • 4 in approximate spread
  • 18-2/3 in bottom width
  • 10-5/9 in closed cubic feet
  • 244-1/2 in H x 18-2/3 in W x 4 in D closed dimension
  • 200 steps
  • Nonslip thread
  • Orange finish
