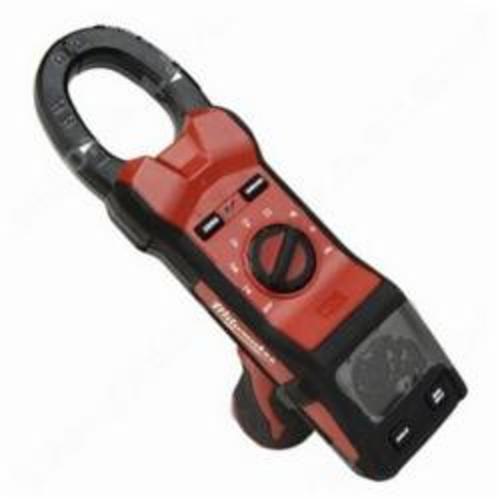

The CLAMP-GUN™ M12™ Cordless LITHIUM-ION Clamp Meter is a heavy duty True-RMS current tester for professional commercial and industrial applications. Powered by the Milwaukee® M12™ REDLITHIUM™ battery, the 2239-21 features an ergonomic pistol grip design which greatly increases comfort and ease-of-use in overhead applications. The unit also provides a wide 1.57 in jaw opening to easily handle very large conductors, a thin jaw profile for access to tight spaces, a large white on black display, embedded non-contact voltage detection and embedded extra bright LED Floodlight.

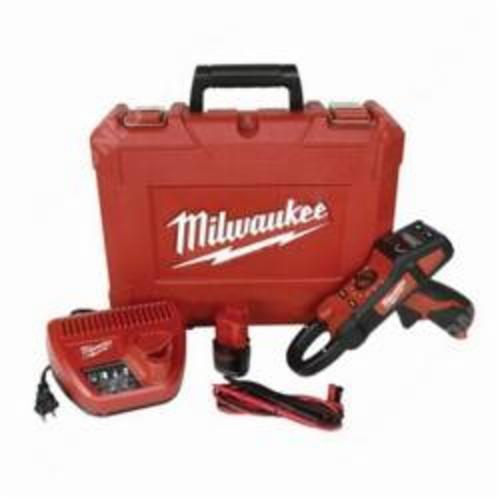

Milwaukee® M12™ CLAMP-GUN™ Clamp Meter Kit, Heavy Duty Digital, 1000 VAC/VDC Electrical Rating, 600 Ohm Resistance, 50/60 Hz Frequency, 1-37/64 in Jaw, 6000 Count, High Contrast White on Black LCD Display, True RMS AC Response, +/-2% + 5 Digits AC Current Accuracy, Frequency Counter: 5 Hz to 60 kHz, Safety Rating: CAT IV 600 V, 12 V Battery Power Source, 14 to 122 deg F Operating
| AC Current Accuracy | : | +/-2% + 5 Digits |
| AC Response | : | True RMS |
| Counts | : | 6000 |
| Frequency Counter | : | 5 Hz to 60 kHz |
| Operating Temperature | : | 14 to 122 deg F |
| Power Source | : | 12 V Battery |
| Safety Rating | : | CAT IV 600 V |
| Type | : | Heavy Duty Digital |
| Electrical Ratings | : | 1000 VAC/VDC |
| Resistance | : | 600 Ohm |
| Frequency Rating | : | 50/60 Hz |
| Jaw Capacity | : | 1-37/64 in |
| Display Type | : | High Contrast White on Black LCD |

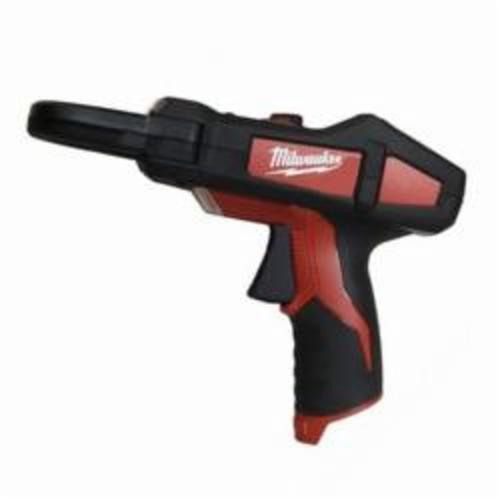

- Ergonomic pistol grip design best orients jaws and display
- Extra large jaw size of 1.57 in measuring up to 1000 MCM cable
- Wide current range to 1000 A AC/DC
- In-rush current measurement for motor starts
- High contrast, white on black display with backlight for easy reading
- LED floodlight and voltage detection add more valuel grip design which greatly increases comfort and ease-of-use in overhead applications
- 0.1 - 4000 uF capacitance
