Enerpac® RC-50

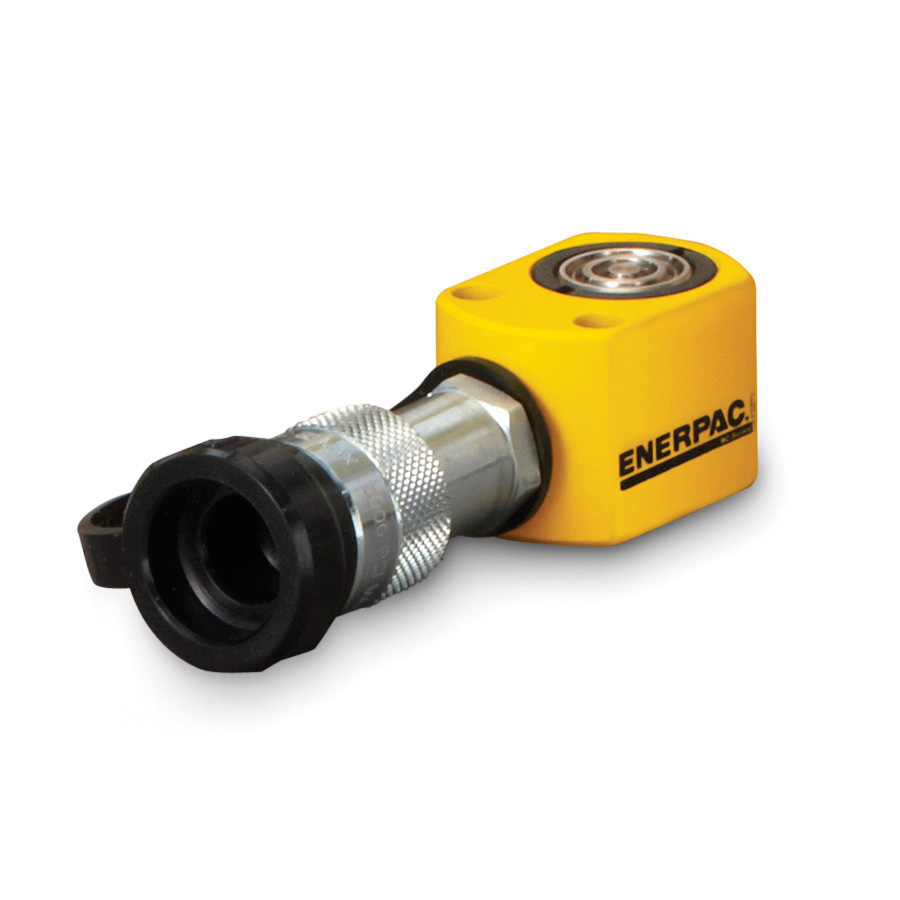

Enerpac® RC-50 DUO General Purpose Single Acting Hydraulic Cylinder, 5 ton Capacity, 1.13 in Dia Bore, 0.63 in L Stroke, 1.63 in H Retract, 1 in Dia Rod, 700 bar

  • TIEPN: ENP RC-50
  • MPN: RC-50
  • UPC: 662005300549
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Enerpac® Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 5 ton, 1.13 in Dia Bore, 0.63 in Stroke, 1.63 in H Retract, Base Mount, 1 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 2.31 in OD

Dimensions      :      2.31 in OD
Finish      :      Baked Enamel
Housing Material      :      Alloy Steel
Mounting Type      :      Base
Series      :      RC
Type      :      DUO General Purpose Single Acting
Capacity      :      5 ton
Bore Size      :      1.13 in Dia
Stroke Length      :      0.63 in
Retract      :      1.63 in H
Rod Diameter      :      1 in
Pressure Rating      :      700 bar
  • Enerpac® RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
  • Unique GR2 bearing design, reduces wear, extending life
  • Collar threads, plunger threads and base mounting holes enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
