Pramet 6754644

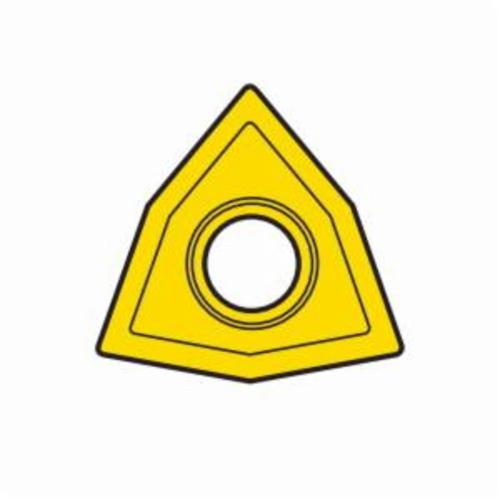

Pramet 6754644 Positive Drill Insert, Trigon Shape, 030208E Insert, WCMX Insert, 2.28 mm THK, 5.556 mm Inscribed Circle, Manufacturer's Grade: D8330

  • TIEPN: PTD 6754644
  • MPN: 6754644
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Pramet Drill Insert, Positive, WCMX Insert, 030208E Insert, Trigon, 5.556 mm Inscribed Circle, 2.28 mm Thickness, 46 Chipbreaker, 0.8 mm Corner Radius, 2.85 mm Hole Dia, Manufacturer's Grade: D8330, 80 deg Included Angle, ISO Code: WCMX 030208E-46, Carbide, CVD Coated

Chipbreaker      :      46
Corner Radius      :      0.8 mm
Finish      :      CVD Coated
Hole Diameter      :      2.85 mm
ISO Code      :      WCMX 030208E-46
Included Angle      :      80 deg
Material      :      Carbide
Type      :      Positive
Shape      :      Trigon
Insert Size      :      030208E
Insert Style      :      WCMX
Thickness      :      2.28 mm
Inscribed Circle      :      5.556 mm
