Louisville® FE7636-E59

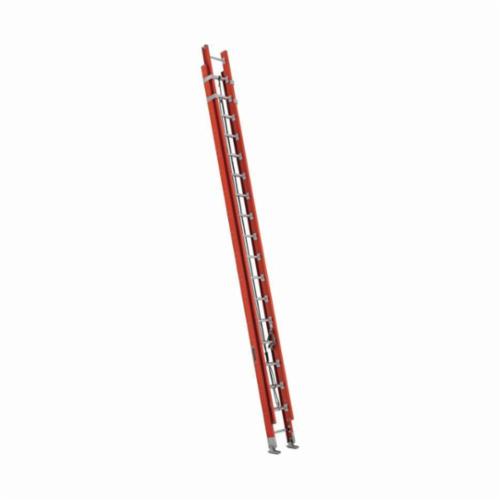

Louisville® FE7636-E59 FE7600 Extra Heavy Duty Multi-Section Professional Extension Ladder With Levelok, 36 ft OAL, ANSI Code: Type IA, 300 lb Load, Fiberglass, 12 in Adjustable Increments

  • TIEPN: LLI FE7636-E59
  • MPN: FE7636-E59
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Extra Heavy Duty Multi-Section Professional, Series: FE7600, 36 ft Overall Length, ANSI Code: Type IA, 300 lb, Fiberglass, 34 ft 2 in Maximum Working Length, 18 ft Section Length, 12 in Adjustable Increments, 17-3/8 in Outside Shoe Base Width, Mar-Resistant Rail, Aluminum Swivel Safety Shoe

Maximum Working Length      :      34 ft 2 in
Outside Shoe Base Width      :      17-3/8 in
Rail Type      :      Mar-Resistant
Section Length      :      18 ft
Series      :      FE7600
Shoe Type      :      Aluminum Swivel Safety
Type      :      Extra Heavy Duty Multi-Section Professional
Overall Length      :      36 ft
ANSI Code      :      Type IA
Load Capacity      :      300 lb
Material      :      Fiberglass
Adjustable Increments      :      12 in
  • Mar-resistant rail end caps
  • Outside slide guides
  • Aluminum rung connector plates
  • QuickLatch™ runglock system, patent 5429207
  • Aluminum swivel safety shoes with Full Metal Boot™
  • 36 ft non-conductive fiberglass extension ladder carries a 300 lb load capacity
  • Features round shaped rungs, non-marring rail end caps, full metal boot and aluminum plate connection rungs
  • 3-11/32 in rail depth
  • 6-1/4 in stack height
  • 15-3/8 in base and 13-11/16 in fly inside width
  • 16-1/16 in fly outside width
  • 21 approximate cubes feet
  • 32 ft maximum extended height
  • 1-1/2 in step depth
  • 27 ft 7 in maximum standing height
  • 8 in approximate spread
  • 20-1/2 in bottom width
  • 21 in closed cubic feet
  • 221-3/4 in H x 20-1/2 in W x 8 in D closed dimension
  • 36 steps, 36 ft extension height&
