TPI F18HTE

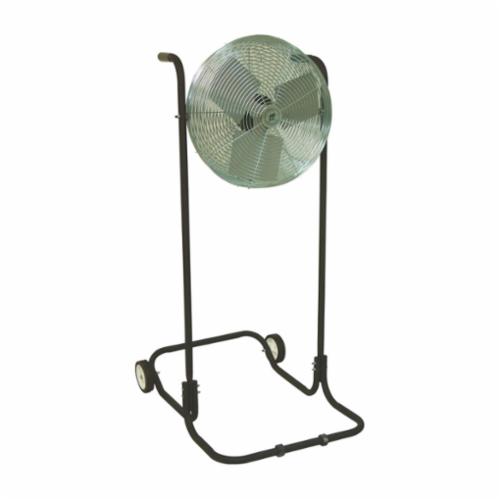

TPI F18HTE 1-Phase High Stand Workstation Floor Fan, 18 in Blade, 3200/4200/4600 cfm Flow Rate, 120 VAC, 2.2 A

  • TIEPN: TPI F-18H-TE
  • MPN: F18HTE
  • UPC: 686334797306
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

TPI Workstation Floor Fan, 1-Phase High Stand, 18 in Blade, 3200/4200/4600 cfm, 1370/1550/1660 rpm Speed, 1/8 hp Power, 120 VAC, 2.2 A, 3 Speed, Paddle Blade, Aluminum Blade, AC Motor, Steel Housing Material, Floor Mounting, SJT 10 ft Cord, 53 in H x 25 in W x 27 in D Dimensions, Import

Blade Material      :      Aluminum
Blade Type      :      Paddle
Cord Type      :      SJT 10 ft
Dimensions      :      53 in H x 25 in W x 27 in D
Domestic/Import      :      Import
Housing Material      :      Steel
Motor Type      :      AC
Mounting Type      :      Floor
Number of Speeds      :      3
Power Rating      :      1/8 hp
Speed      :      1370/1550/1660 rpm
Type      :      1-Phase High Stand
Blade Size      :      18 in
Flow Rate      :      3200/4200/4600 cfm
Voltage Rating      :      120 VAC
Amperage Rating      :      2.2 A
  • Rotary switch
  • Head tilts 360 deg
  • Coated steel guards
  • Steel hub/spider aluminum paddle blades
  • Permanently lubricated
  • 10 ft cord length
  • Sleeve bearing
  • 5/16 in Dia shaft
  • Totally enclosed
  • Floor mounting
