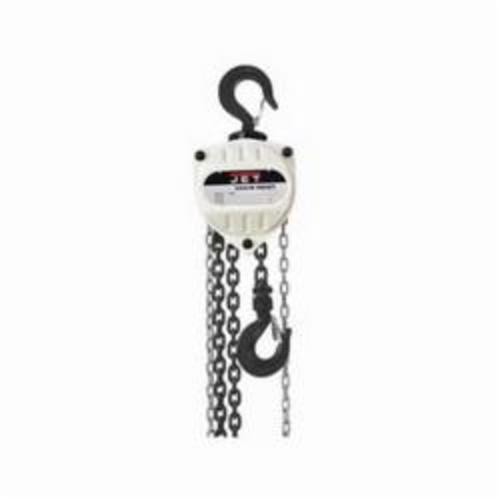

JET® Hand Chain Hoist, Single Reeved, Series: SMH, 2 ton, 15 ft Lifting Height, 18-1/2 in Minimum Between Hooks, 91 lb Pull to Lift, Automatic/Weston Brake, 15 in L x 11 in W x 8.6 in H
| Brake Type |
: |
Automatic/Weston |
| Dimensions |
: |
15 in L x 11 in W x 8.6 in H |
| Series |
: |
SMH |
| Type |
: |
Single Reeved |
| Load Capacity |
: |
2 ton |
| Lifting Height |
: |
15 ft |
| Minimum Between Hooks |
: |
18-1/2 in |
| Pull to Lift Rated Load |
: |
91 lb |
- Full range capacity 1/2 - 10 tons
- Economical hand chain hoist designed for years of trouble free service
- 10 ft, 15 ft, 20 ft and 30 ft lifts standard, custom length lifts available
- All steel construction with a durable powder coat finish
- Light weight compact design for low headroom applications
- Completely enclosed weston type automatic brake system for precise load spotting
- Triple-spur gears provide high efficiency ratio with minimum effort
- Needle bearing supported load sheave for smear operation
- Smear rolled edge on hand chain cover prevents side pull jamming
- Available with slip clutch style overload protection
- Induction hardened grade 80 load chain
- Drop forged hooks with heavy duty safety latches swivel 360 deg for easy rigging
- Standard hand chain drop equals lift length
- Proof tested with test certificate
