Enerpac® RCH-603

Enerpac® RCH-603 Single Acting Spring Return Plunger Cylinder, 60 ton Capacity, 4.88 in Dia Bore, 3 in L Stroke, 9-3/4 in H Retract, 3.63 in Dia Rod, 10000 psi

  • TIEPN: ENP RCH-603
  • MPN: RCH-603
  • UPC: 662005302932
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Enerpac® Plunger Cylinder, Single Acting Spring Return, Series: RCH, 60 ton, 4.88 in Dia Bore, 3 in Stroke, 9-3/4 in H Retract, Base Mount, 3.63 in Rod Dia, 10000 psi, Steel Housing, Baked Enamel, 6-1/4 in OD

Dimensions      :      6-1/4 in OD
Finish      :      Baked Enamel
Housing Material      :      Steel
Mounting Type      :      Base
Series      :      RCH
Type      :      Single Acting Spring Return
Capacity      :      60 ton
Bore Size      :      4.88 in Dia
Stroke Length      :      3 in
Retract      :      9-3/4 in H
Rod Diameter      :      3.63 in
Pressure Rating      :      10000 psi

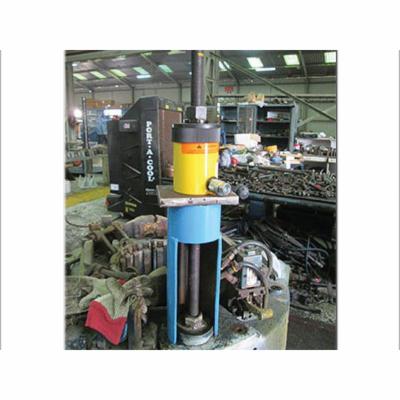

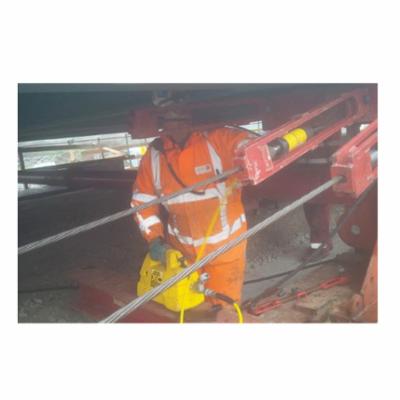

  • Enerpac® hollow plunger cylinders provide versatility in testing, maintenance and tensioning applications
  • The hollow plunger design allows for both pull and push forces
  • Cylinders are nickel plated, floating center tube on models over 20 tons increases product life
  • Baked enamel finish for increased corrosion resistance
  • Collar threads for easy fixturing
