Louisville® AE4240

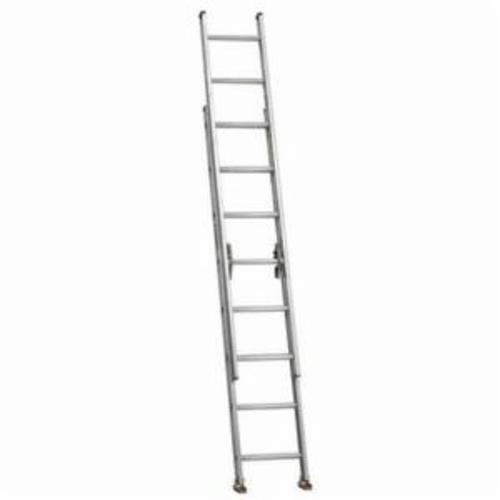

Louisville® AE4240 AE4200 Multi-Section Extension Ladder, 40 ft OAL, 225 lb Load, Aluminum, Type II

  • TIEPN: LLI AE4240
  • MPN: AE4240
  • UPC: 728865016256
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Multi-Section, Series: AE4200, 40 ft Overall Length, ANSI Code: Type II, 225 lb, Aluminum, 35 ft Maximum Working Length, 20 ft Section Length, 17-1/8 in Outside Shoe Base Width, Slip Resistant Rail, Swivel Safety Shoe

Maximum Working Length      :      35 ft
Outside Shoe Base Width      :      17-1/8 in
Rail Type      :      Slip Resistant
Section Length      :      20 ft
Series      :      AE4200
Shoe Type      :      Swivel Safety
Type      :      Multi-Section
Overall Length      :      40 ft
ANSI Code      :      Type II
Load Capacity      :      225 lb
Material      :      Aluminum
  • Full swivel safety shoe can be used with tread down or in spike position
  • Side rails are full 3 in extrusions shaped into a modified I-Beam for strength and light weight
  • QuickLatch® equipped runglock provides easier method of securing fly and base sections when extended
  • Tempered aluminum rungs are hydraulically double crimped to side rails and serrated on the top for a slip-resistant surface
  • D-rung step
  • Silver color
  • 1-1/2 in D step
  • 3 in D rail
  • 5-1/4 in H stack
  • 17-1/8 in W base
  • 30 ft 6 in H maximum standing
  • 37 ft maximum reach
  • 5-3/4 in approximate spread
  • 18 in W bottom
  • 14-5/8 in cu-ft closed
  • 244-1/4 in H x 18 in W x 5-3/4 in D closed
