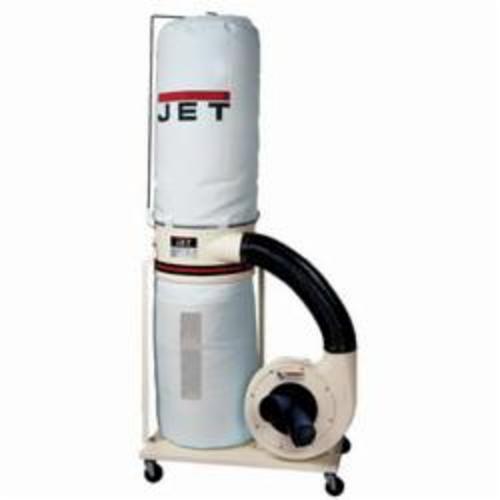

JET® JT9-708658K

JET® JT9-708658K Canister Vortex Cone Dust Collector, 1-1/2 hp Power Rating, 115/230 VAC, 1100 cfm Air Flow, 5 micron Filter, 70 to 80 dB Sound

  • TIEPN: JET 708658K
  • MPN: JT9-708658K
  • UPC: 731325175301
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

The JET DC-1100VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter and increases packing efficiency of the collector bag. The high air velocity (cfm) stands up to any competitive specifications and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop.

JET®, JT9-708658K, Dust Collector, Bare Tool/Kit: Bare Tool, Canister Vortex Cone, 1-1/2 hp Power, 115/230 VAC, 11/5.5 A, 1 ph, 1100 cfm Air Flow, 5 micron Filter, 70 to 80 dB Sound Level, 20 in Dia x 32 in L Filter, 5.3 cu-ft Collection Bag, 1, 2 Air Inlets, 6 in Dia 1-Hose, 4 in Dia 2-Hose, 10-1/2 in Static, 12571 fpm Maximum Hose Velocity, 11 in Impeller Diameter, Steel Impeller

Amperage Rating      :      11/5.5 A
Collection Bag Capacity      :      5.3 cu-ft
Filter Size      :      20 in Dia x 32 in L
Hose Connection Size      :      6 in Dia 1-Hose, 4 in Dia 2-Hose
Impeller Diameter      :      11 in
Impeller Material      :      Steel
Maximum Hose Velocity      :      12571 fpm
Number of Air Inlets      :      1, 2
Number of Phases      :      1
Static Pressure      :      10-1/2 in
Type      :      Canister Vortex Cone
Bare Tool/Kit      :      Bare Tool
Power Rating      :      1-1/2 hp
Voltage Rating      :      115/230 VAC
Air Flow Rate      :      1100 cfm
Filter Rating      :      5 micron
Sound Level      :      70 to 80 dB
  • Vortex cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble free use
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • High air velocity (cfm) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan cooled motors are rated for continuous duty
  • Collection Bag Length : 30 in
