Dixon® D2S3
send Send print Print

Dixon® D2S3

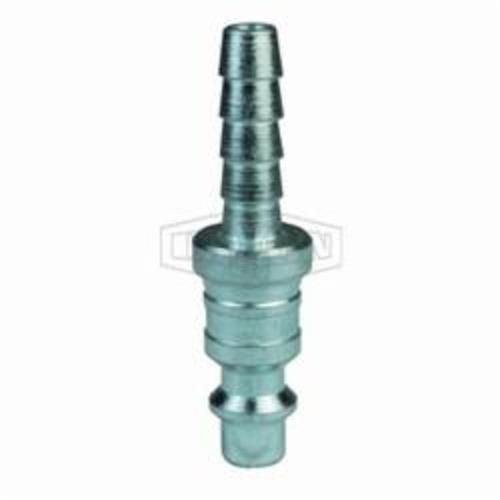

Dixon® D2S3 DF Series Industrial Interchange Quick Disconnect Pneumatic Nipple, 3/8 x 1/4 in Nominal, Quick Disconnect Coupler x Standard Hose Barb, 500 psi Pressure, Steel

  • TIEPN: DVC D2S3
  • MPN: D2S3
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Dixon® Quick Disconnect Pneumatic Nipple, Industrial Interchange, Series: DF Series, 3/8 x 1/4 in Nominal, Quick Disconnect Coupler x Standard Hose Barb End Style, 2.09 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, 0.56 in OD

Dimensions      :      0.56 in OD
Length      :      2.09 in
Series      :      DF Series
Temperature Rating      :      -40 to 250 deg F
Type      :      Industrial Interchange
Nominal Size      :      3/8 x 1/4 in
End Style      :      Quick Disconnect Coupler x Standard Hose Barb
Pressure Rating      :      500 psi
Material      :      Steel
  • Machined components are manufactured using solid bar stock
