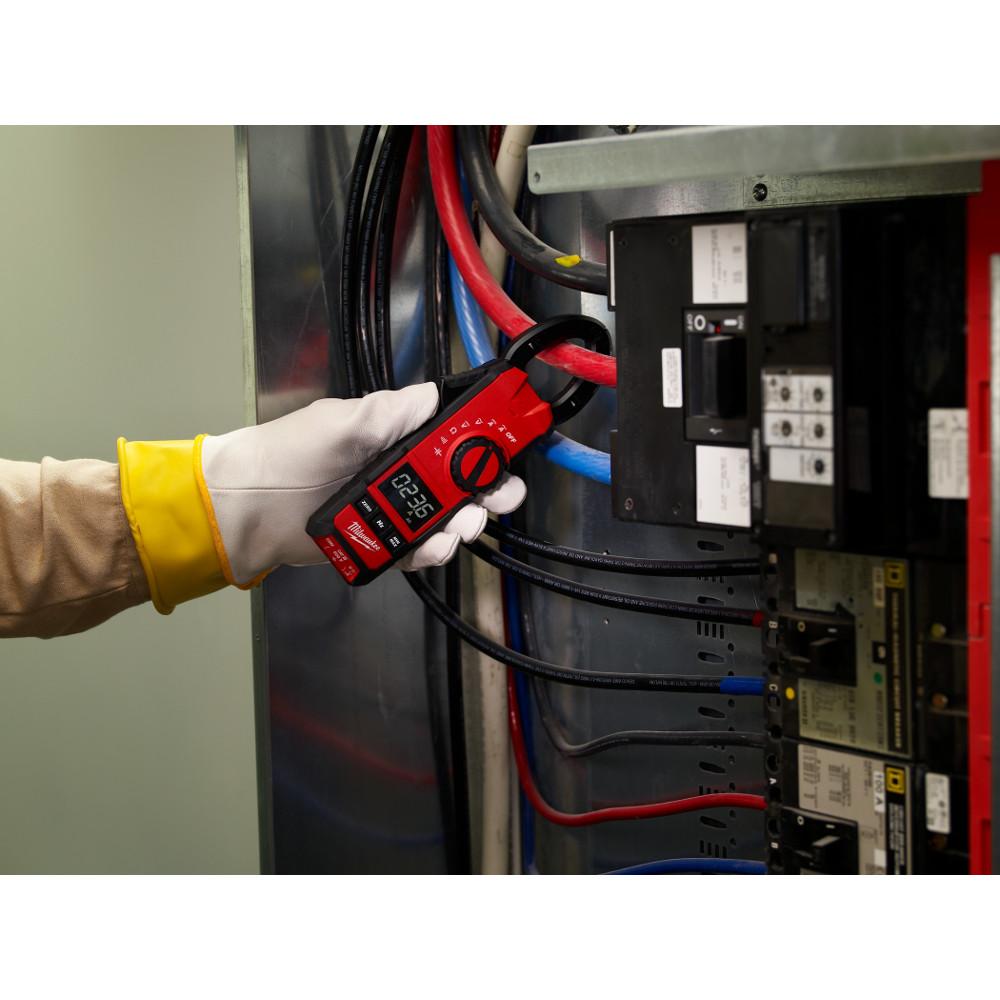

The Milwaukee Clamp Meter is a heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional electrician, the 2237-20 Clamp Meter provides a wide 1.3 in jaw opening to easily handle large conductors, a thin jaw profile for access to tight spaces and a high contrast white-on-black display for clearer readings. In addition, the Milwaukee Clamp Meter was designed with embedded non-contact voltage detection and an LED work light to increase end user productivity. Covered by Milwaukee 5-Year Warranty.

Milwaukee® Clamp Meter, 600 A, 600 VAC/VDC Electrical Rating, 6 kOhm Resistance, 1 Hz to 10 kHz Frequency, 1.3 in Jaw, High Contrast White on Black LCD Display, +/-2% +/-5 Digits AC Current Accuracy, +/-1.5% RDG +/-4 RDG AC, +/-1.0% RDG +/-3 RDG DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, AA Alkaline Battery Power Source, -40 to 752 deg F Operating, 9-1/2 in L Dimensions

• True-RMS for accurate measurement in all applications
• Thin jaw profile for easier wire measurement in panels or in bundles
• AC current range - 0 to 600 A with accuracy of (+/- 2% riding +/- 5 digit) at 50/60 Hz, peak 1500 A with accuracy of (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz, CF equals to 2.5 at 600 A, add 2% at CF> 2 , CF equals 3 at 500 A, <=5 A, add 3 digit, 0 to 600 A with accuracy of (+/- 1.5% riding +/- 5 digit) at 50/60 Hz and (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz
• Resistance range - 600 Ohm/6 kOhm with accuracy (+/-1%rdg+/-5dgt)
• AC voltage range - 0 to 600 V with accuracy of (+/-1.5% riding +/-4 digit) at 50/60 Hz and (+/-3.5% riding+/-5digit) at 40 to 400 Hz
• DC voltage range - 60/600 V with accuracy of +/-(1% riding +/-3 digits)
