Enerpac® RC1006

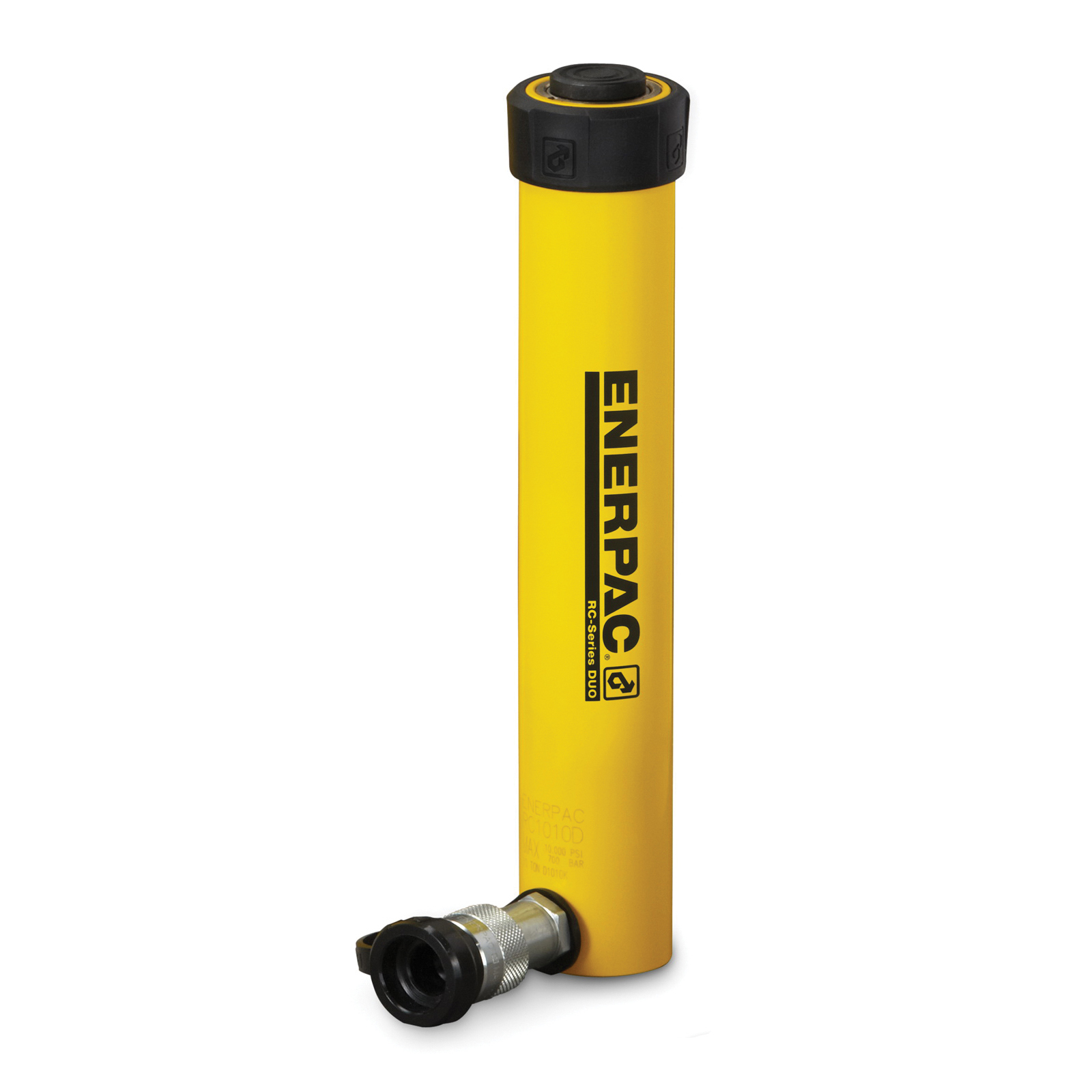

Enerpac® RC1006 General Purpose Single Acting Spring Return Solid Plunger Hydraulic Cylinder, 103.1 ton Capacity, 5.13 in Bore, 6.63 in L Stroke, 14.06 in Retract, 2.81 in Dia Rod, 10000 psi Pressure

  • TIEPN: ENP RC1006
  • MPN: RC1006
  • UPC: 662005301843
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Enerpac® Hydraulic Cylinder, General Purpose Single Acting Spring Return Solid Plunger, 103.1 ton, 5.13 in Bore, 6.63 in Stroke, 14.06 in Retract, Base Mount, 3/8-18 NPTF, 2.81 in Rod Dia, 10000 psi, Steel Housing, Baked Enamel, 7 in OD x 20.69 in H

Dimensions      :      7 in OD x 20.69 in H
Finish      :      Baked Enamel
Housing Material      :      Steel
Mounting Type      :      Base
Port Size      :      3/8-18 NPTF
Series      :      RC Series
Type      :      General Purpose Single Acting Spring Return Solid Plunger
Capacity      :      103.1 ton
Bore Size      :      5.13 in
Stroke Length      :      6.63 in
Retract      :      14.06 in
Rod Diameter      :      2.81 in
Pressure Rating      :      10000 psi
  • Unique GR2 bearing design, reduces wear, extending life
  • Collar threads and plunger threads enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy duty, pretension spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending
