JET geared head bench lathes feature an enclosed gearbox for smear, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances.

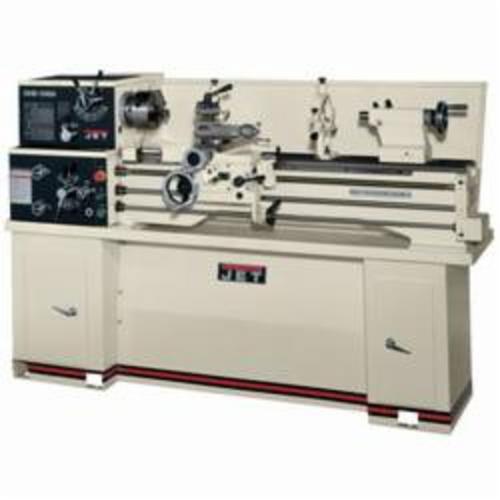

JET® Bench Lathe, Geared Head, 14 in Swing Over Bed, 8-9/32 in Swing Over Cross Slide, 40 in Distance Between Centers, 7-3/8 in Bed Width, #3 Morse Taper Tailstock Taper, #5 Morse Taper Spindle, 70 to 2000 rpm Spindle Speed, 8 Spindle Speed, 6-5/16 in Cross Travel, 3-3/4 in Tailstock Spindle Travel, 37-1/2 in Carriage Travel, 3-1/2 in Compound Travel, 0.0103 in Maximum Cross Feed Rate per Revolution, 0.0374 in Maximum Longitudinal Feed Rate per Revolution, 2 hp, 230 VAC, 79 in L x 28-1/2 in W x 30 in H

• One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
• Enclosed gearbox design provides smear, quiet operation
• Fast, easy speed changes
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly being oiled during operation
• Gearbox gives wide inch threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent lead screw and feed rod
• Spindle actuation control is apron mounted
• Compound and cross slide have backlash elimination
• Adjustable gibs are incorporated in the carriage and slideways
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Oil pan included
• Tolerance test certificate included
• 6 in 3-jaw direct mount chuck with top reversing jaws
• 8 in 4-jaw chuck
• 12 in face plate
• Steady and follow rest, four way tool post, metric change gear, splash guard, centers and headstock center sleeve, threading dial, tool box and tools
