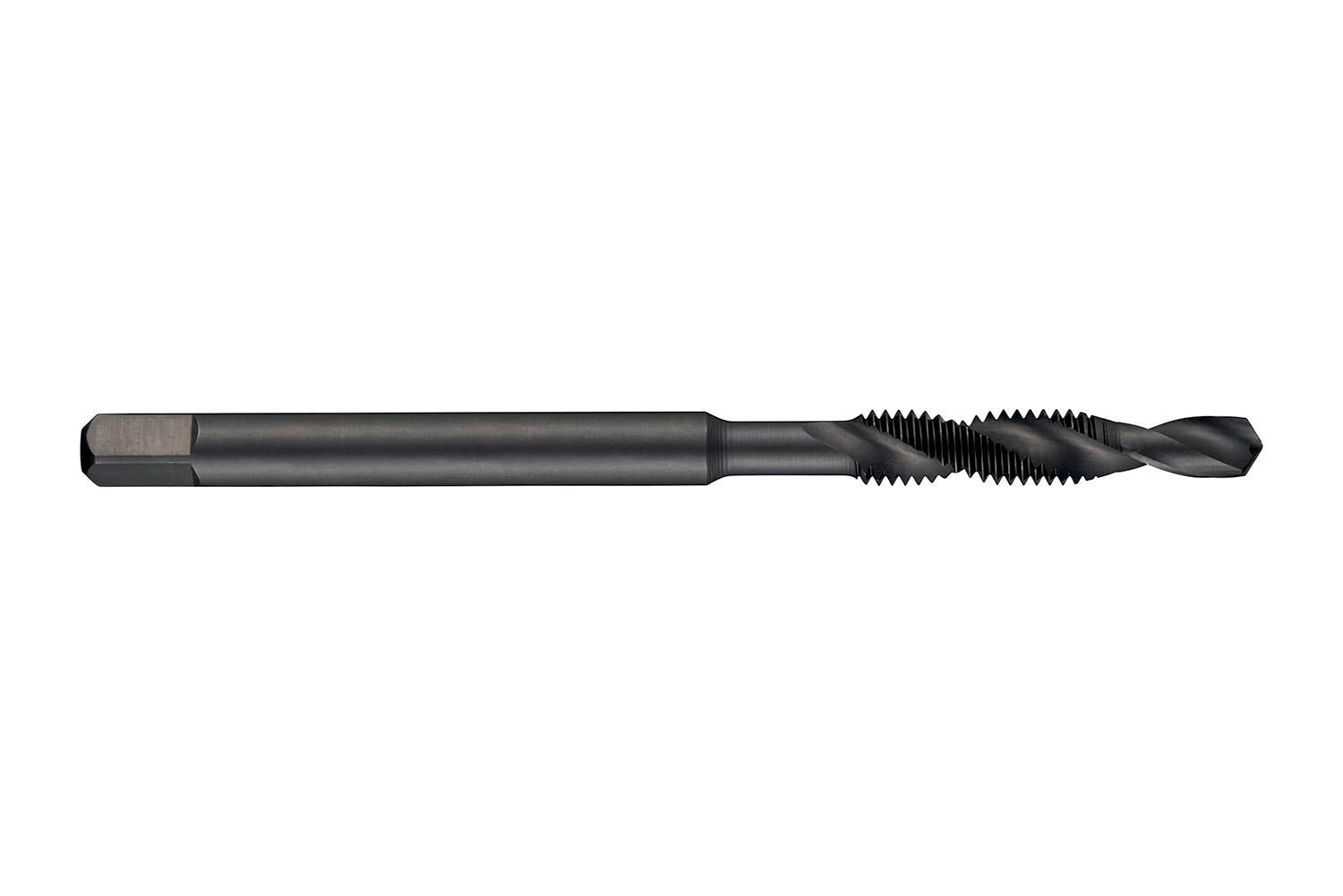

Dormer Combination Drill and Tap, Spiral Flute, Series: E650, Measurement System: Metric, Class of Fit: 2B, 10.2 mm Drill, M12x1.75 Thread, 24 mm Drill Length, 113 mm Overall Length, 2 Flutes, Right Hand Cutting Direction, Square Shank, 9 mm Shank Diameter, 7.1 mm Square, HSS, Steam Oxide
| Cutting Direction |
: |
Right Hand |
| Drill Size |
: |
10.2 mm |
| Finish/Coating |
: |
Steam Oxide |
| Material |
: |
HSS |
| Measurement System |
: |
Metric |
| Number of Flutes |
: |
2 |
| Overall Length |
: |
113 mm |
| Series |
: |
E650 |
| Shank Diameter |
: |
9 mm |
| Shank Type |
: |
Square |
| Square Size |
: |
7.1 mm |
| Type |
: |
Spiral Flute |
| Class of Fit |
: |
2B |
| Drill Length |
: |
24 mm |
| Thread Size |
: |
M12x1.75 |
- Spiral flute 30 deg
- Drills and taps in a single pass, reducing cycle time
- Commonly used in multi-spindle operations with reversing capacity
- Designed to provide 65% thread engagement and a 2B class of fit
- Steam oxide finish reduces wear and chip welding in harder ferrous materials
